Sound Proofing / Insulation: Locations

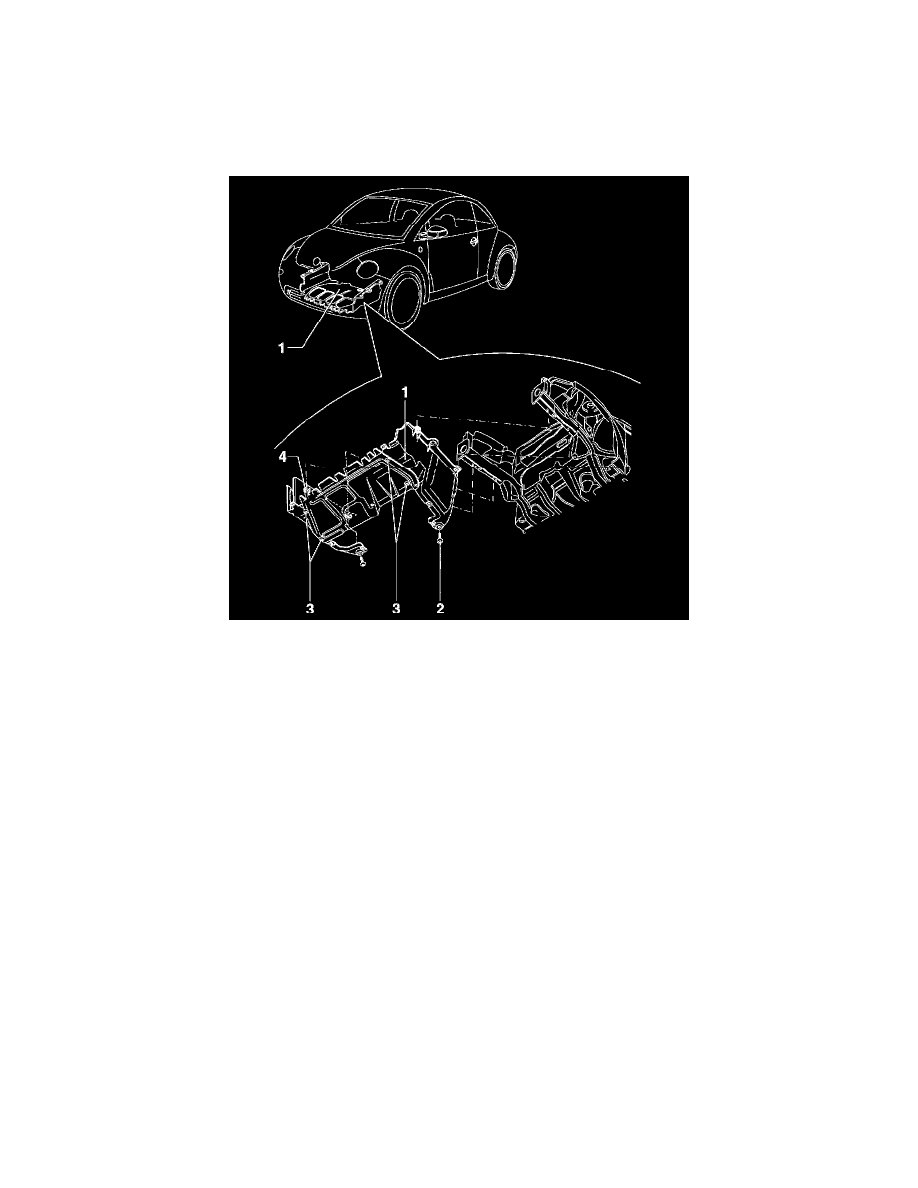

Noise insulation, assembly overview

NOTE:

Slight variations are possible depending on model equipment

Models with gas engine

1. Noise insulation

For gasoline engines
Bolted and forward edge is inserted into lock carrier
Lower part is screwed to side panel

2. Bolt

Qty. 2

3. Bolt

Qty. 10

4. Lock washer

Qty 4

Models with a gasoline engine (Convertible)
