GLI L4-2.0L Turbo (BPY) (2008)
Power Window Safety Switch: Service and Repair
Driver Interior Locking Button, Removing And Installing
NOTE: The Push Button Illumination L76 is integrated in the Drivers Interior Locking Button E308, which cannot be replaced separately.
CAUTION:
-
Switch off all electrical consumers.
-
Switch ignition off and remove ignition key.
-
When removing and installing components in a visible area (switches, covers, trim, etc.), mask off the areas at which a prying tool ( Trim
Removal Wedge VAS 3409, screwdriver) will be positioned, using commercially available adhesive tape.
Removing
-
Remove door trim panel.
-

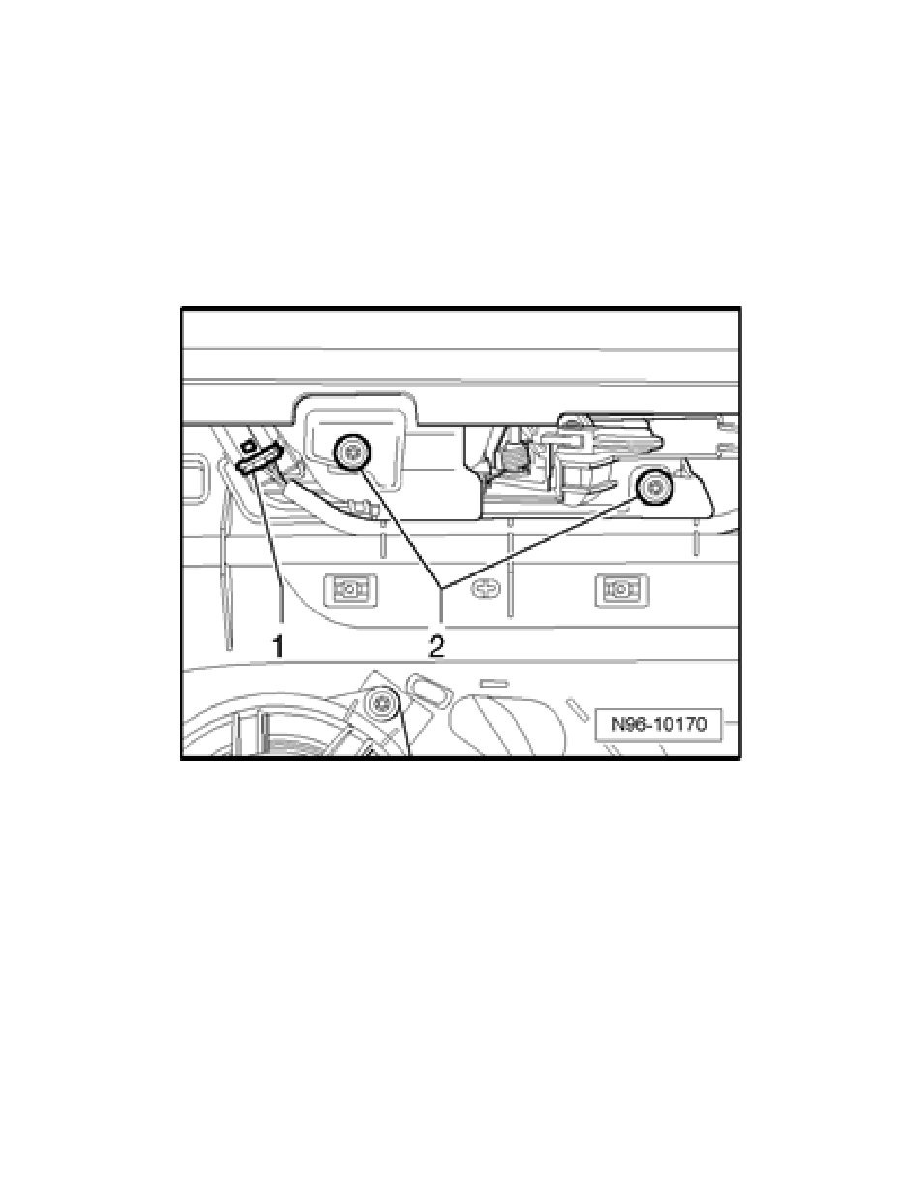

Disconnect electrical connection - 1 - and remove mounting bolts - 2 -.
-
Remove the door opening with the Drivers Interior Locking Button E308 from the door trim.
