GLI L4-2.0L Turbo (CCTA) (2008)
Electronic Throttle Actuator: Service and Repair
Accelerator Pedal Module Assembly Overview
Accelerator Pedal Module Assembly Overview
1
Connector
‹› Black, 6 pin.
2
Throttle Position (TP) Sensor (G79) and Accelerator Pedal Position Sensor 2 (G185)
‹› Both sensors are integrated into one housing.
‹› Not adjustable.
‹› The TP sensor transmits the driver control to the Engine Control Module (ECM).

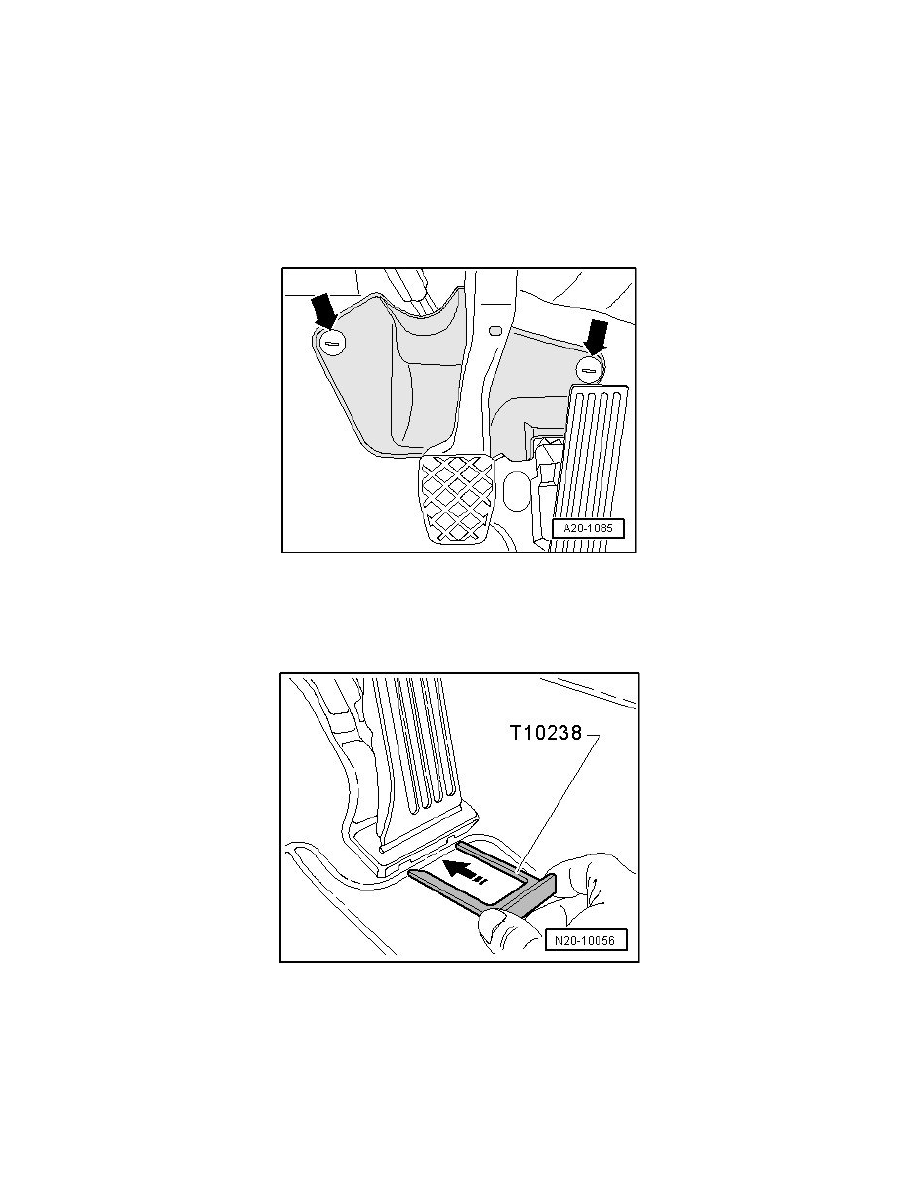

‹› - A - Openings for the release tool (T10238).
‹› Removing and installing, refer to --> [ Accelerator Pedal Module ] See: Accelerator Pedal Module.
3
Bolt, 9 Nm
4
Cap
