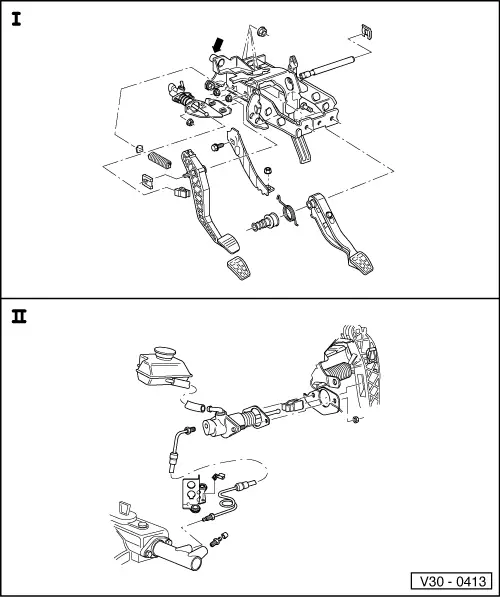

• Mounting bracket
• ◆ Before removal remove steering column with column tube

=> Repair group 48; removing and installing steering column and column tube.

• ◆ Separate brake pedal from master brake cylinder

=> Repair group 47; separating brake pedal from brake servo.

Note:

Only the new mounting bracket which has the guide tube (arrow) for the clutch cable on vehicles with mechanical control will be supplied as a replacement part .

• ‒ When installing in vehicles with hydraulic clutch control the guide tube must be sawn off flush with the mounting bracket.

• Self-locking hexagon nut, 25 Nm
• ◆ Always renew
• Self-locking hexagon nut, 25 Nm
• ◆ Always renew
• Hexagon bolt, 25 Nm
• ◆ Qty. 2
• Pivot pin for clutch and brake pedal
• ◆ Installation position => Fig. 1
• Securing clip
• ◆ Removing
• ◆ Installing => Page 30-10
• Bolt, 25 Nm
• Self-locking hexagon nut, 25 Nm
• ◆ Always renew

• Support
• ◆ Removing and installing => Page 30-16
• Brake pedal
• Clutch pedal
• ◆ Removing and installing => Page 30-9
• Retainer
• ◆ Removing and installing => Page 30-11
• Securing clip
• ◆ Removing
• Over-centre spring
• ◆ Removing and installing => Page 30-7

• Over-centre spring mounting
• ◆ Install in mounting bracket
• Self-locking hexagon nut, 25 Nm
• ◆ Always renew
• Mounting bracket
• ◆ Remove clutch pedal and master cylinder before removing
• Master cylinder
• ◆ Removing and installing => Page 30-15
• Self-locking hexagon nut, 25 Nm
• ◆ Always renew

→ Fig.1     Installation position of clutch and brake pedal pivot pin

The recess (arrow) is located on the clutch pedal side.
