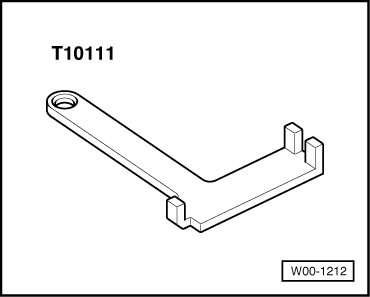

| Fit assembly clip -T10111- onto over-centre spring from right. |
| –
| Ensure that the assembly clip is seated correctly on over-centre spring: |
| 1 - | The rear part of assembly clip must be positioned on the over-centre spring so that the claws fit over the web -1-. |
| 2 - | Press clutch pedal lightly towards the bulkhead panel. Hook the lug -2- of assembly clip into cut-out of over-centre spring. |
| –
| Now press clutch pedal as far as possible towards bulkhead panel until the over-centre spring can be removed downwards from mountings on bearing bracket and clutch pedal. |
| –
| Bring clutch pedal to rest position. |
|
|
|
