Golf Mk4
Power unit
4-cyl. injection engine (natural gas)
Mixture preparation system, electronic inj.,Gas
Checking components
Checking intake manifold change-over
Checking intake manifold change-over
Checking intake manifold change-over
Test prerequisite
l
Perform this test only if torque is insufficient, that is when elasticity or pulling power is inadequate.
Special tools and workshop equipment required
t

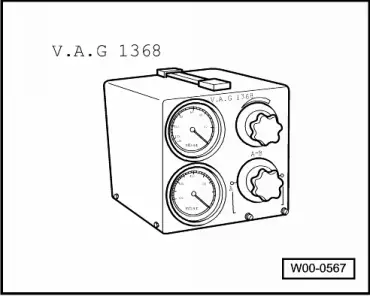

Vacuum tester -V.A.G 1368-
t

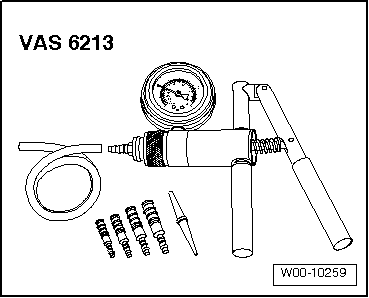

Hand vacuum pump -VAS 6213-
Test procedure
–
Check that vacuum lines are connected correctly
→ Chapter
and
→ Chapter
.
–
Check vacuum hoses for porosity.
–
Test vacuum system for leaks.
Check vacuum unit in upper part of intake manifold for leaks
–
Pull vacuum hose to intake manifold change-over unit
-arrow-
off intake manifold change-over valve
-1-
.
Note
The vacuum unit for intake manifold change-over is integrated in the intake manifold and not visible from the outside.
–

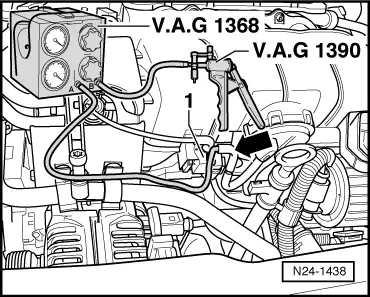

Connect hand vacuum pump -VAS 6213- to vacuum tester -V.A.G 1368- -connection B-.
–
Connect vacuum unit vacuum hose to vacuum tester -V.A.G 1368- -connection A-.
–
Set vacuum tester to -A/B- position.
–
Operate hand vacuum pump -VAS 6213- several times. Create a vacuum of maximum 500 millibar.
–
Vacuum must not drop.
If vacuum drops:
–
Renew intake manifold upper part
→ Chapter
.
Check vacuum unit in intake manifold lower part for leaks
–
Pull vacuum hose to intake manifold change-over unit
-arrow-
off intake manifold change-over valve 2
-1-
.
–
Connect hand vacuum pump -VAS 6213- to vacuum tester -V.A.G 1368- -connection B-.
–
Connect vacuum unit vacuum hose to vacuum tester -V.A.G 1368- -connection A-.
–
Set vacuum tester to -A/B- position.
–
Operate hand vacuum pump -VAS 6213- several times. Create a vacuum of maximum 500 millibar.
–
Vacuum must not drop.
If vacuum drops:
–
Renew intake manifold lower part
→ Chapter
.
If the pressure does not drop on either of vacuum units:
–
Check change-over mechanism in intake manifold for freedom of movement.
–
Remove intake manifold upper part.
–
Repeat leak test on both vacuum units. Check whether change-over flaps move.
If a fault is found:
–
Renew intake manifold upper part or intake manifold lower part.
