Golf Mk4

Removing left spring
Removing left spring

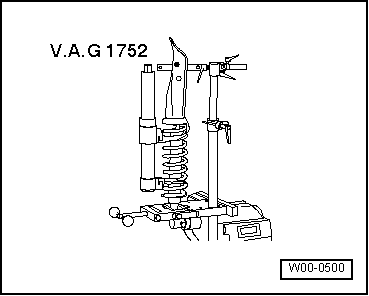

–  Assemble spring retainer -V.A.G 1752/15 L. U.- on spring compressor -V.A.G 1752/1-.
  N42-0426
–  Position spring retainer -V.A.G 1752/15 L. O.- on the highest accessible spring coil.
  N42-0417
–  Apply spring compressor -V.A.G 1752/1-.
  N42-0418
–  Turn spindle on spring compressor clockwise until claws of spring compressor and spring retainer -arrows- engage in one another.
–  Install bolt -1- on upper spring retainer.
The bolt -1- must be inserted from below.
–  Turn spindle on spring compressor until spring is slightly compressed.
Check that spring retainers are properly positioned on spring coils.
  N42-0419
–  Compress the coil spring until it can be removed.
–  Stop compressing spring at the latest when spring coils touch one another.
–  Remove spring together with spring compressor from vehicle.
If a spacer is located below the bump stop, remove the spacer together with the spring.
–  Set down spring with spring compressor.
1 - Spring compressor -V.A.G 1752/1-
2 - Spring retainer -V.A.G 1752/15 L. O.-
3 - Spring retainer -V.A.G 1752/15 L. U.-
  N42-0420
