Golf Mk5
| Installing |

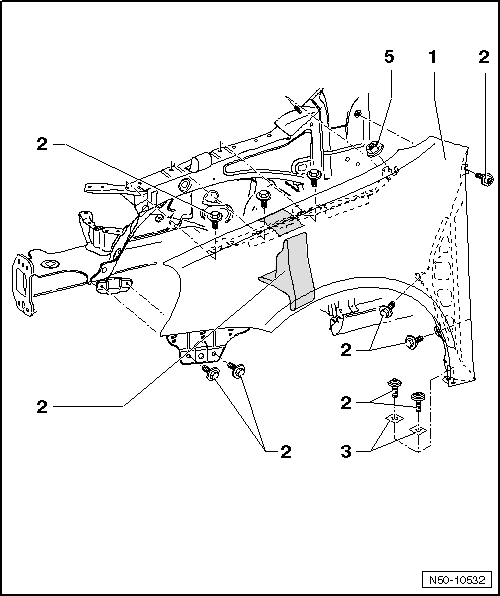

| Install in reverse order of removal. |
| – | Always insert “zinc intermediate piece AKL 381 035 50” between wing and side member. |
| – | Specified torque for bolts -2- and hexagon nuts -5-: 6 Nm. |
| – | Ensure that gaps are parallel and specified dimensions are maintained → Rep. Gr.00. |
