Golf Mk5

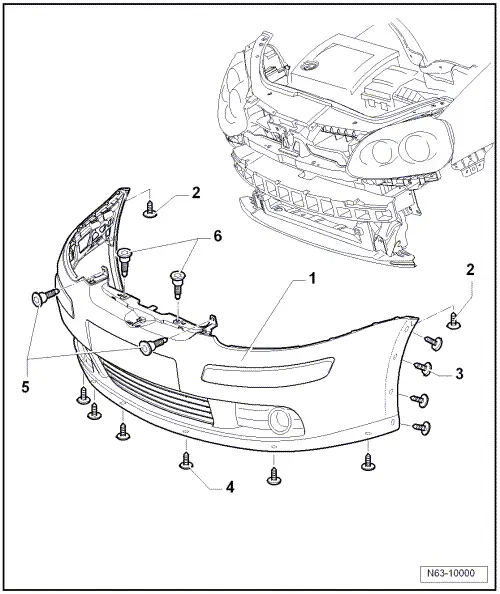

| Assembly overview - bumper cover |
| 1 - | Cover |
| q | Material PP/EPDM |
| q | Removing and installing → Chapter |
| 2 - | Bolt |
| q | 1.5 Nm |
| 3 - | Bolt |
| q | Qty. 4 per side. |
| q | 2 Nm |
| 4 - | Bolt |
| q | Qty. 6 |
| q | 1.5 Nm |
| 5 - | Bolt |
| q | Qty. 2 |
| q | 5 Nm |
| 6 - | Bolt |
| q | Qty. 2 |
| q | 5 Nm |
