Removing and installing oil filler neck, engine code BCA

Removing

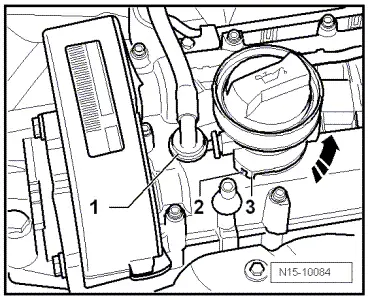

–	Pull non-return valve -1- out of oil filler neck.

–	Carefully raise oil filler neck slightly and turn it in -direction of arrow-.

–	Remove oil filler neck from camshaft housing.

Installing

–	Insert oil filler neck in camshaft housing.

–	Turn it opposite to direction of -arrow- until groove of oil filler neck -3- engages in lug -2- on camshaft housing.

Note

The oil filler neck must be raised again slightly to allow the groove in the oil filler neck -3- to engage in the lug -2- on the camshaft housing.
