Golf Mk5

Draining oil filter housing
Draining oil filter housing
  Note
A valve is opened in the oil filter housing when oil drain adapter -T40057- is screwed in. When oil drain adapter -T40057- is removed, the valve closes again.
Special tools and workshop equipment required

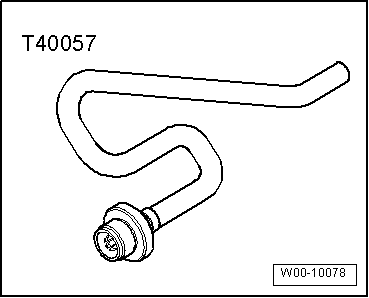

t  Oil drain adapter -T40057-
Procedure:
  W00-10078
–  Unscrew dust cap from oil filter housing -arrow-.
  N17-10033

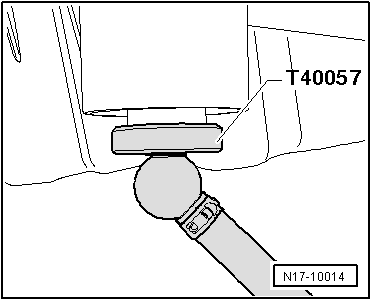

–  Hold hose of oil drain adapter -T40057- in a catch pan and screw oil drain adapter -T40057- into oil filter housing.
–  Drain engine oil.
  Note
Observe environmental regulations for disposal.
  N17-10014
