Golf Mk5

Securing engine to assembly stand

Securing engine to assembly stand

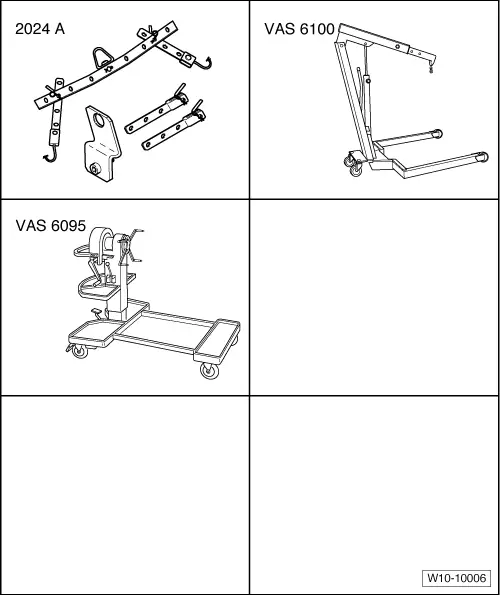

Special tools and workshop equipment required
t  Lifting tackle -2024 A-
t  Workshop hoist -VAS 6100-
t  Engine and gearbox support -VAS 6095-

Secure engine on engine and gearbox support -VAS 6095- to carry out repairs.
–  Disconnect gearbox.

–  Attach lifting tackle -2024 A- as follows and lift from engine and gearbox jack -VAS 6100- using workshop crane -V.A.G 1383 A-.
Belt pulley end: 2nd hole in hook rail at position 1.
Flywheel end: 1st hole in hook rail at position 7.
  Caution
Use securing pins on hooks and locking pins to avoid damage to engine and vehicle.
t  The positions marked 1…4 on the bar must be towards the belt pulley end.
t  The holes in the hook rails are counted up from the hook.
–  Secure engine to engine and gearbox support -VAS 6095-.
  N10-10091
