Golf Mk5

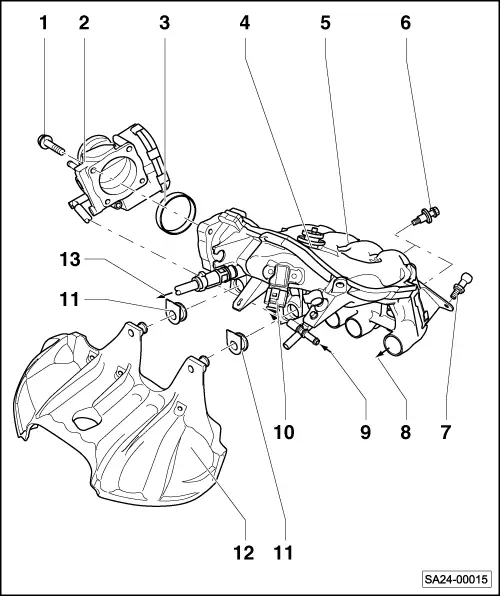

| Dismantling and assembling intake manifold - upper part |
| 1 - | Bolt |
| q | 8 Nm |
| 2 - | Throttle valve module -J338-* |
| q | If replaced match engine control unit |
| 3 - | Seal |
| q | Renew if damaged |
| 4 - | Rubber bush |
| q | For engine cover |
| 5 - | Intake manifold - upper part |
| 6 - | 8 Nm |
| q | For securing intake manifold - upper part |
| 7 - | 5 Nm |
| q | For engine cover |
| 8 - | To intake manifold - lower part |
| 9 - | From activated charcoal filter system solenoid valve I (pulsed) -N80- |
| q | Activated charcoal filter system → Chapter |
| 10 - | Intake manifold pressure sensor -G71- with intake air temperature sender -G72- |
| 11 - | Rubber bush |
| 12 - | Warm air deflector plate with intake manifold support |
| 13 - | To brake servo |
