Assembly overview - rear window washer system

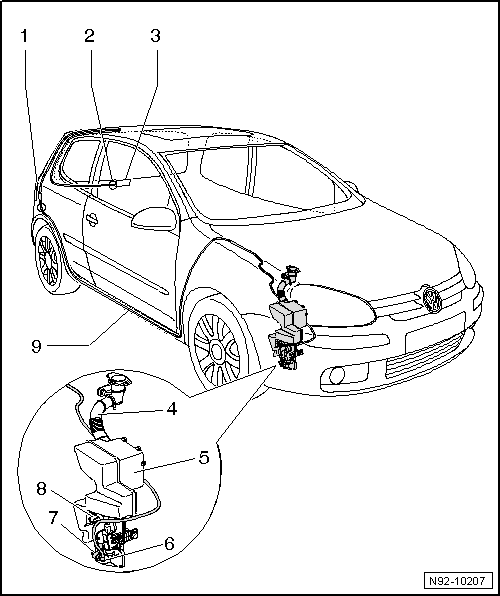

Assembly overview - rear window washer system
1 - Connection piece
q   Point of separation, passenger compartment wiring harness to rear lid wiring harness
q   Overview of hose couplings for washer fluid lines → Chapter
2 - Connection piece
q   Connection to spray jet for rear window washer system
q   Overview of hose couplings for washer fluid lines → Chapter
3 - Spray jet for rear window washer system
q   Renewing spray jet → Chapter
q   Adjusting spray jet → Chapter
4 - Filler pipe for washer fluid reservoir
q   Removing and installing → Chapter.
5 - Washer fluid reservoir
q   Removing and installing (vehicles with no auxiliary heater) → Chapter
q   Removing and installing (vehicles with an auxiliary heater) → Chapter
6 - Angled connection piece
q   Connection to windscreen and rear window washer pump -V59-
q   Overview of hose couplings for washer fluid lines → Chapter
7 - Windscreen and rear window washer pump -V59-
q   Removing and installing → Chapter.
8 - Windscreen washer fluid level sender -G33-
q   Removing and installing → Chapter.
9 - Hose
q   Hose repair → Chapter
