Golf Mk6

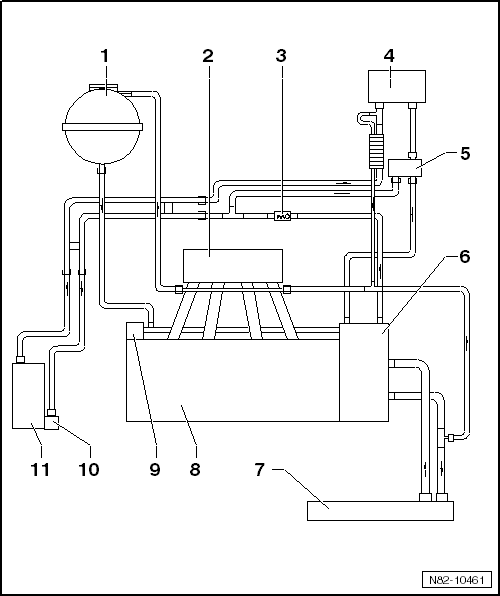

Connection diagram for coolant hoses in vehicles with auxiliary heating, engine codes BCA, BUD, CGGA |
1 - | Coolant expansion tank |
2 - | Intake manifold with charge air cooler |
3 - | Non-return valve |
4 - | Heat exchanger for heater |
5 - | 4/2-way valve with thermostat |
6 - | Thermostat housing |
7 - | Radiator |
8 - | Cylinder head and cylinder block |
9 - | Coolant pump |
10 - | Auxiliary heater Thermo Top V |
q | Removing and installing → Chapter |
11 - | Circulation pump -V55- |
q | Removing and installing → Chapter |
