Checking condensation water drainage hose on heater and air conditioner unitVX1

Checking condensation water drainage hose on heater and air conditioner unit -VX1-

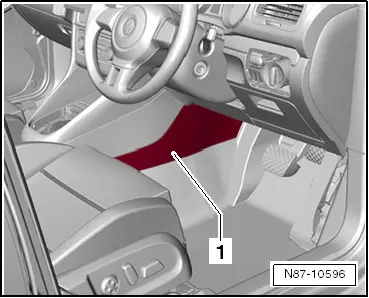

–	Remove footwell cover -1- on driver side → General body repairs, interior; Rep. gr.68.

Note

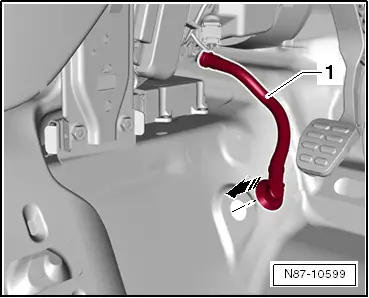

t	The condensation drain hose outlet -arrow- is located under the carpet and the foot rest.

t	It should be possible to push the condensation drain hose -1- onto the heater and air conditioning unit -VX1- connection without tension.

t	The condensation drain hose must be fitted securely to the condensation drainage connection of the heater and air conditioner unit -VX1-.
