Golf Mk6
Power transmission
6-speed manual gearbox 02Q
Gearbox,mechanics,gears,shafts,internal operation
Output shaft for 1st through 4th gears / justing_output_shaft_for_1st_through_4th_gears/">Adjusting output shaft for 1st through 4th gears

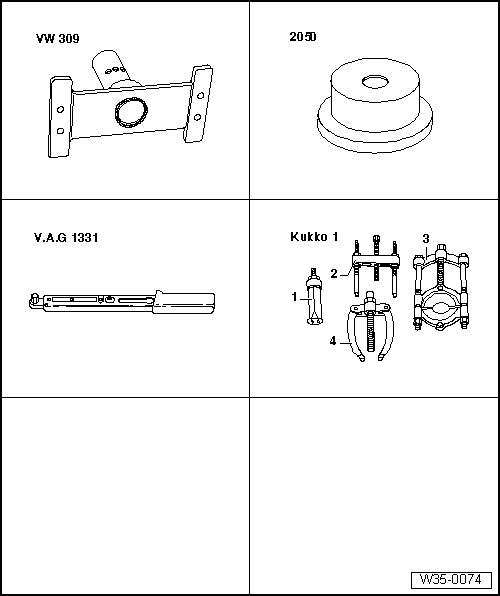

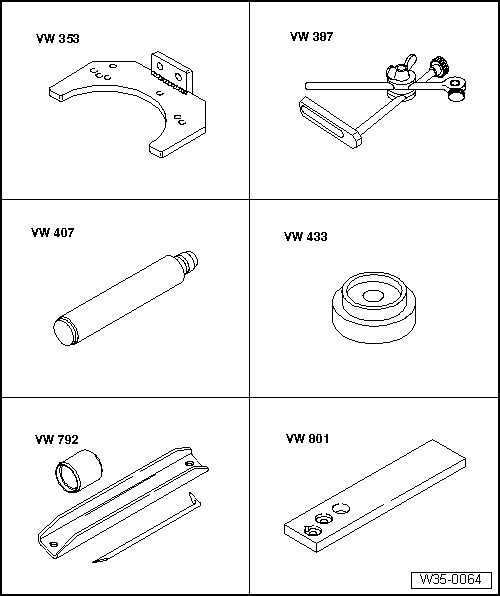

Determining thickness of shim
Determining thickness of shim
Determining thickness of shim

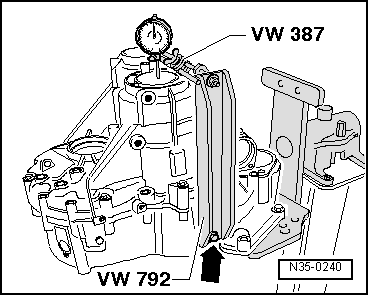

Specified bearing preload is obtained as follows:
Subtracting measured value (0.14 mm) from inserted shim (1.70 mm).
Add a constant value for preload (0.20 mm).
Example:
Installed shim
1.70 mm
- Measured value
0.14 mm
+ Preload (constant)
0.20 mm
Shim thickness
1.76 mm
–
Determine thickness of shim from table
→ Chapter
.
–

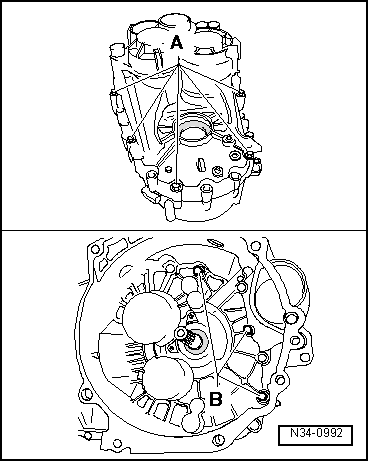

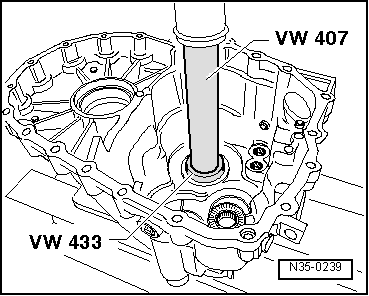

Remove gearbox housing and pull tapered roller bearing outer race from gearbox housing.
A -
Counter support, e.g. -Kukko 22/2-
B -
Internal puller, 46 … 58 mm, e.g. -Kukko 21/7-
–
Remove inserted shim (1.70 mm thick) from gearbox housing.
