Golf Mk6

Installing
Installing
Install in reverse order of removal. During this step, observe the following:
  Note
t  Renew hose clips.
t  Renew seals.
t  Allocate all components according to → Electronic parts catalogue „ETKA“.
If the pipe/hose line or plastic line was removed:

–  Push pipe/hose line -1- with new seal -2- onto connection of master cylinder -4- until securing clip -3- engages audibly.
–  Test line by tugging on it.

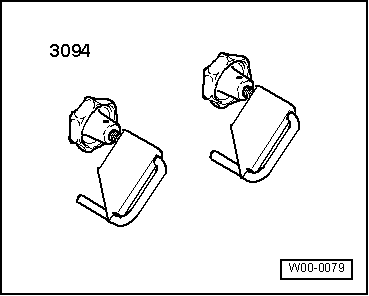

–  After removing hose clamps up to 25 mm -3094-, return supply hose to its original shape, if necessary.
–  Bleed clutch mechanism → Chapter.
–  Install battery tray and battery → Electrical system; Rep. gr.27.
–  Install air filter with engine cover → Rep. gr.24.
–  Connect battery and follow procedure after connecting battery → Electrical system; Rep. gr.27.
  A30-0156
