Golf Mk6

Draining
Draining
  WARNING
Steam may escape when expansion tank is opened. Cover sealing cap with a cloth and open it carefully.
–  Open filler cap on coolant expansion tank.
Remove noise insulation → General body repairs, exterior; Rep. gr.66.

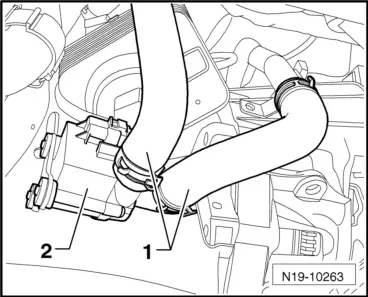

–  Pull coolant hoses -1- off coolant circulation pump -V178--2-.
  N19-10263

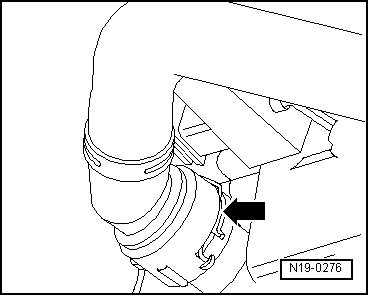

–  Pull off lower coolant hose retaining clip -arrow- and remove coolant hose from quick-release connection of radiator.
  N19-0276

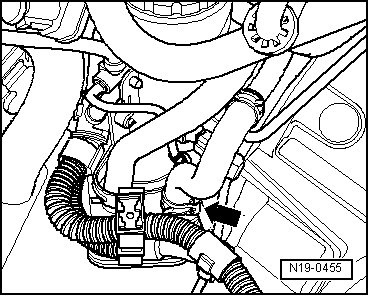

–  To drain coolant from engine, also remove coolant hose from oil cooler -arrow-.
  Note
Observe environmental regulations for disposal.
  N19-0455
