Golf Mk6
Power unit
4-cylinder injection engine (1.4 l direct injection engine, turbocharger and supercharger)
Engine assy,cylinder block,crankcase
Assembly mountings
Assembly overview - assembly mountings (Touran, Golf Plus, Eos, Scirocco, Golf, Golf Cabriolet)
Assembly overview - assembly mountings (Touran, Golf Plus, Eos, Scirocco, Golf, Golf Cabriolet)
Assembly overview - assembly mountings (Touran, Golf Plus, Eos, Scirocco, Golf, Golf Cabriolet)
Note
The securing bolts for the assembly mountings are stretch bolts and must be renewed.
Engine assembly mountings
A
1)
= 20 Nm + 90° (
1
/
4
turn) further
B
1)
= 40 Nm + 90° (
1
/
4
turn) further
C
1)
= 60 Nm + 90° (
1
/
4
turn) further
1)
Renew.

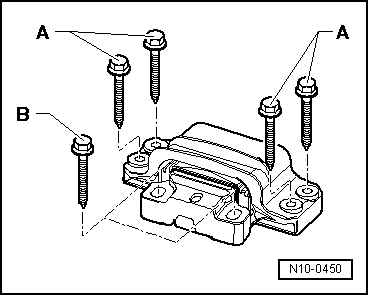

Gearbox assembly mounting
A
1)
= 40 Nm + 90° (
1
/
4
turn) further
B
1)
= 60 Nm + 90° (
1
/
4
turn) further
1)
Renew.
Pendulum support
A
1)
= tensile strength of 8.8 = 40 Nm + 90° (1/4 turn) further
A
1)
= tensile strength of 10.9 = 50 Nm + 90° (1/4 turn) further
B
1)
= 100 Nm + 90° (
1
/
4
turn) further
1)
Renew.
