Removing and installing radiator fanV7 and radiator fan 2V177
Removing and installing radiator fanV7 and radiator fan 2V177
Removing and installing radiator fan -V7- and radiator fan 2 -V177-
Note
The work sequence for vehicles only equipped with the radiator fan -V7- is the same.
Special tools and workshop equipment required
t
Torque wrench (5…50 Nm) -V.A.G 1331-
Removing
–
Remove engine splash protection.
–

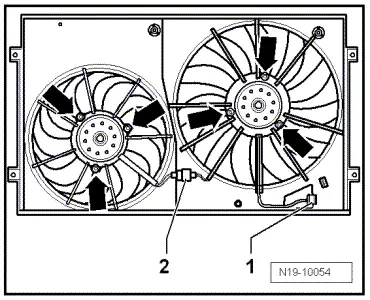

Separate connector
-1-
and remove cowling securing bolts
-arrows-
.
–
Remove cowling with fans upwards.
–
Separate connection
-2-
and free wiring.
–
Unclip connector
-1-
from cowling and free wiring.
–
Unscrew nuts
-arrows-
and remove fan.
Installing
Installation is carried out in the reverse order. When installing, note the following:
Specified torques:
Component
Nm
Radiator fan to cowling
10
Cowling to radiator
5
