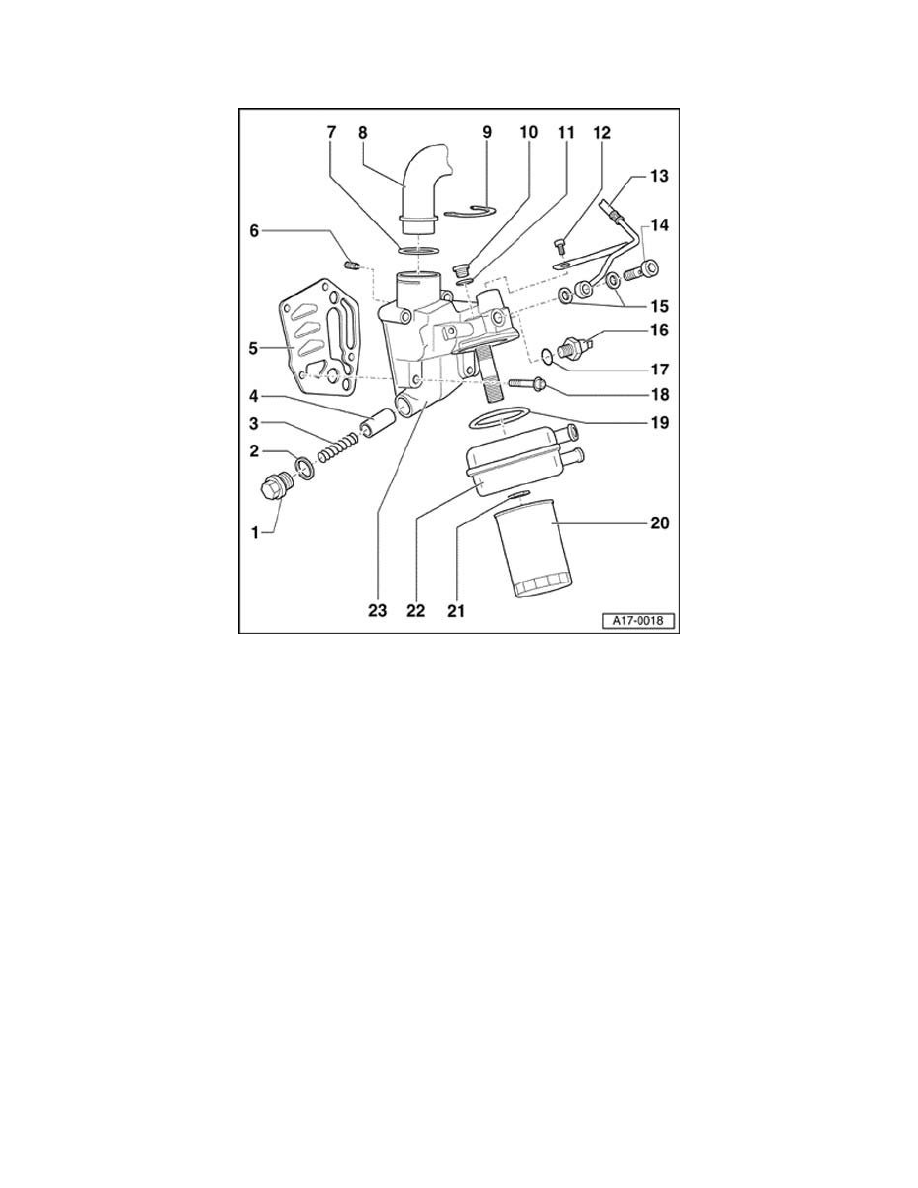

Golf L4-1.8L Turbo (AWW) (2003)
If sealing ring is leaking cut open and replace.
12- 20 Nm
13- Oil supply pipe
To turbocharger
14- Banjo bolt, 30 Nm
15- Gasket
Replace
16- 1.4 bar Oil Pressure Switch -F1-, 25 Nm
Black
17- Seal
If sealing ring is leaking cut open and replace.
18- 15 Nm plus an additional 1/4 turn (90°)
Replace
19- Gasket
Replace
Snaps into tabs of oil cooler
20- Oil filter element
Remove with tension strap
Fasten by hand
21- 25 Nm
22- Oil cooler
Ensure sufficient clearance to surrounding components
Coat contact surfaces to oil filter bracket outside seal with sealant AMV 188 100 02.
23- Oil filter bracket
With pressure relief valve, approx. 4 bar
