Golf L4-1.8L Turbo (AWW) (2003)

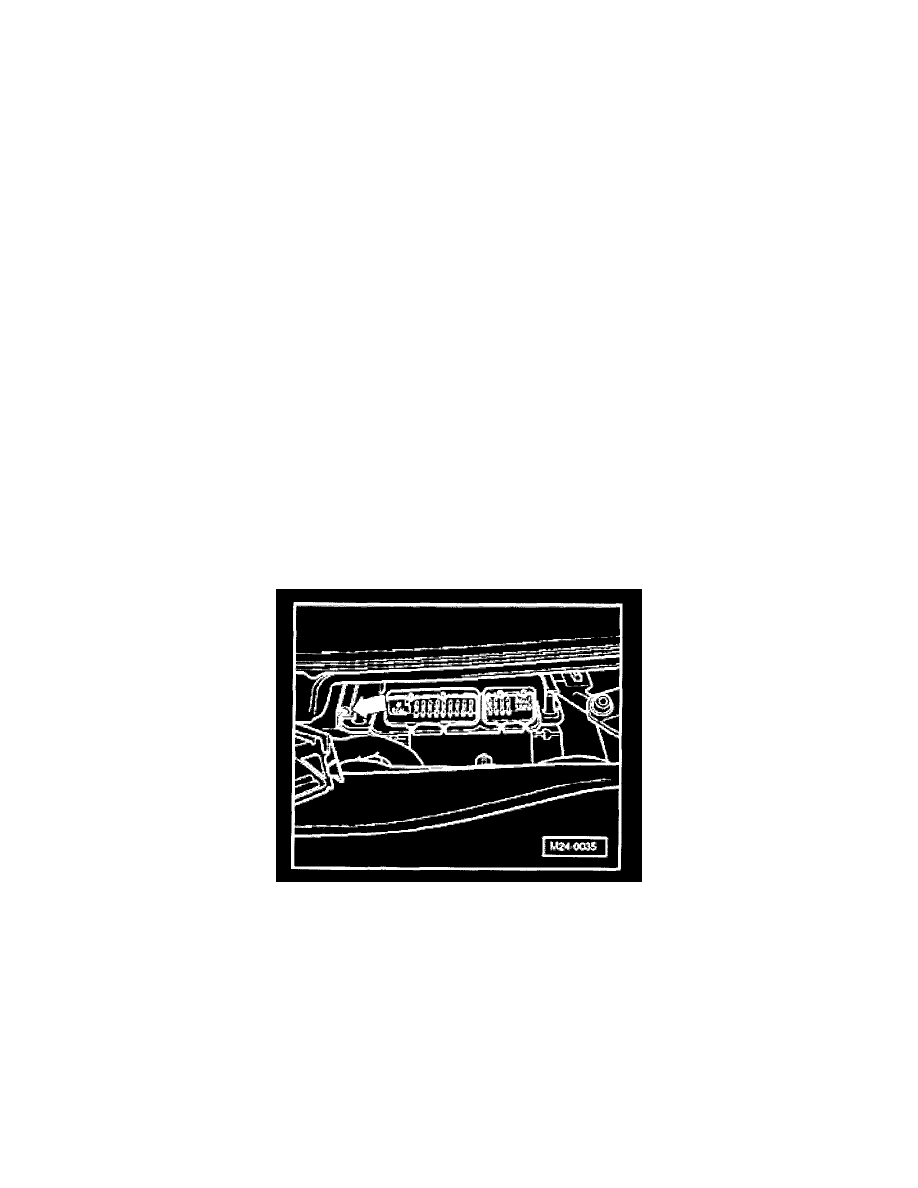

Engine Control Module: Service and Repair
Engine Control Module, Adapting to Electronic Immobilizer
Special tools and equipment
-
VAG1551 scan tool or VAG1552 mobile scan tool with VAG1551/3B cable
Conditions
-
Authorized vehicle key required.
Work sequence
-
Connect VAG1551 scan tool or VAG1552 mobile scan tool with VAG1551/3B cable.
-
Switch ignition on.
-
Operate scan tool or vehicle system tester taking into account information on display:
-
Press key 1 for "Rapid data transfer".
-
Press keys 1 and 7 for address word "instrument cluster" and confirm entry with Q key.
Indicated on display
1J0919991A A4-COMBIINSTR. VDO X00
Coding 20142 WSC XXXXX
-
Press -> key.
Indicated on display
IMMO IDENTNO .: VWZ7Z0555153
->
-
Press -> key.
Indicated on display
Rapid data transfer
HELP
Select function XX
-
Press keys 1 and 0 for function "Adaption" and confirm entry with Q key.
Indicated on display
Adaption
Feed in channel number XX
-
Press key 0 twice for "Channel number 0" and confirm entry with Q key.
Indicated on display
Adaption
Q
Erase learned values?
-
Confirm input with Q key.
Indicated on display
Adaption
->
Learned values have been erased
-
Conclude adaption by pressing -> key.
-
Press keys 0 and 6 for function "End output" and confirm entry with Q key.
-
Switch ignition off.
NOTE: The identity of the engine control module is read into the immobilizer control module when next switching the ignition on.
