Piston: Service and Repair
Piston Installation Position and Piston/Cylinder Allocation

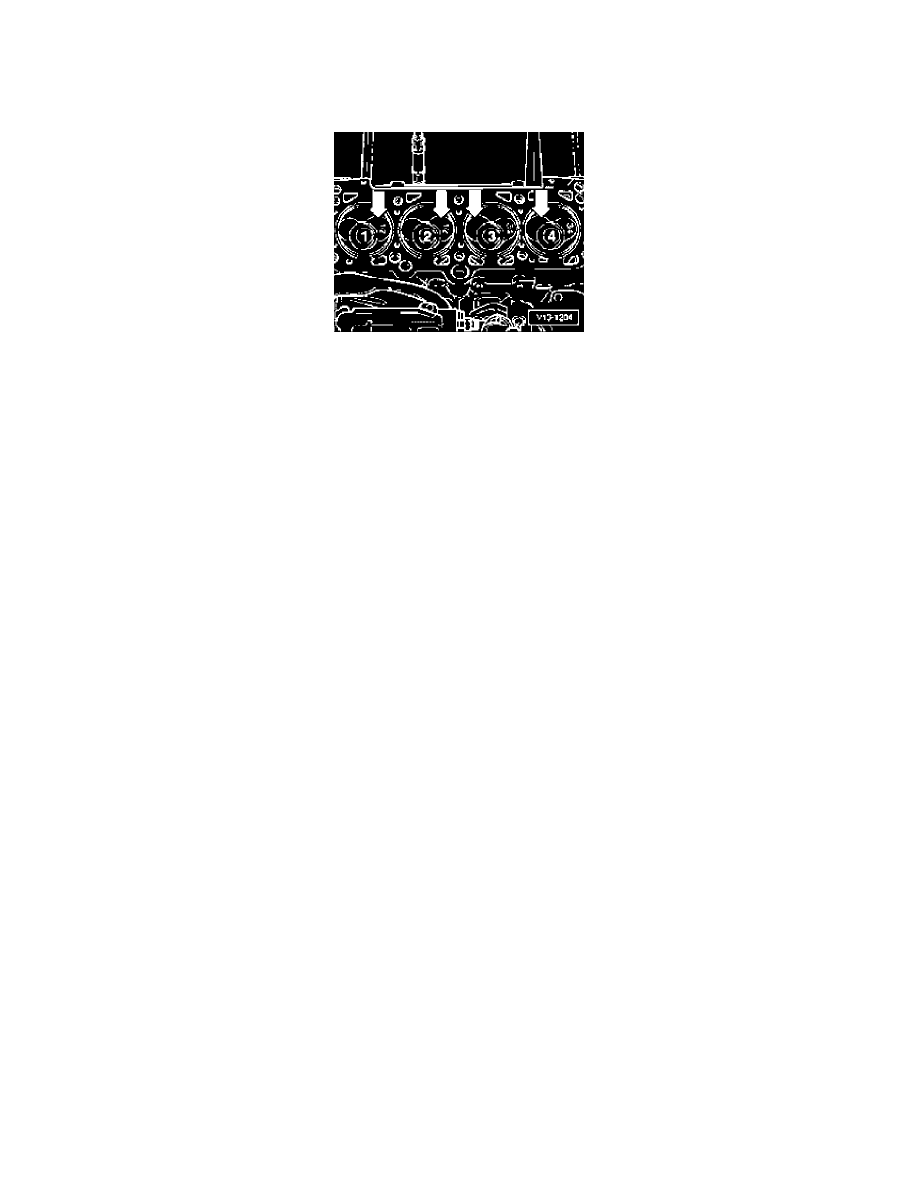

Piston installation position and piston/cylinder allocation
Piston in cylinders 1 and 2:
Larger intake valve chamber toward flywheel end - arrows -
Piston in cylinders 3 and 4:
Larger intake valve chamber toward belt pulley end arrows -
Note:
^
New piston allocation to cylinders is shown by a colored marking on piston crown.
^
Piston for cylinders I and 2.- marked 112.
^
Piston for cylinders 3 and 4.- marked 314.
