Jetta L4-1.9L DSL Turbo (BEW) (2004)
-

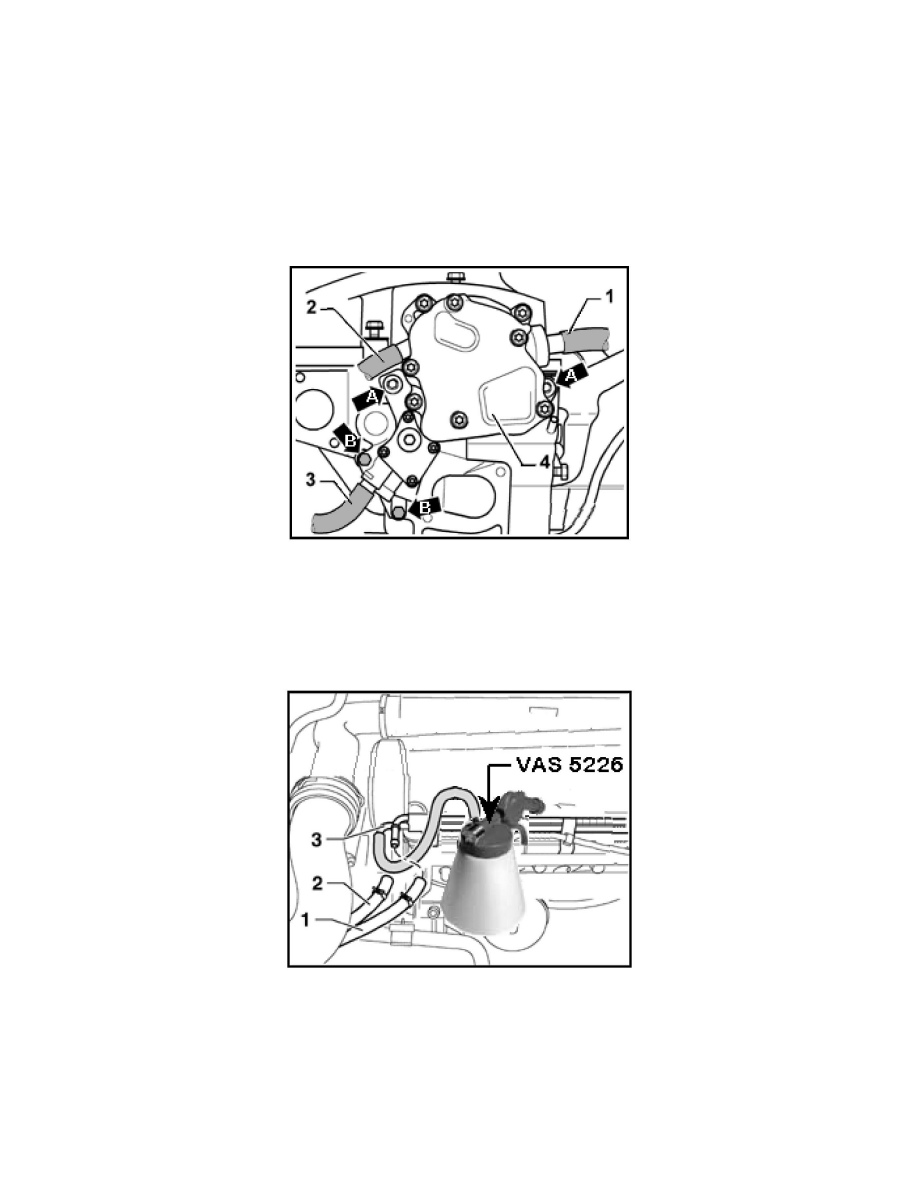

Use special clic-hose clip pliers V.A.G 1723 to remove clamp and vacuum hose -1- from tandem pump -4-
-
Use special spring clamp pliers to remove clamp and fuel supply hose -2- with white mark from tandem pump
-
Remove 6mm socket head bolts -arrow A- and 5mm socket head bolts -arrow B- securing tandem pump to cylinder head
-
Separate tandem pump from cylinder head
-
Raise tandem pump slightly upward, remove clamp and fuel return hose -3- with blue mark and remove tandem pump
-
Remove seal if it was not removed with tandem pump
-
Clean rear surface of cylinder head in preparation for new tandem pump installation
-
Proceed to Section G
Section G
Section G - New Beetle Vacuum Pump Installation
-
On new tandem pump (038 145 209 E) connect fuel return hose -3- with blue mark to return connection of tandem pump -4- and secure with
spring clamp
-
Ensure coupling is properly aligned to the camshaft, install tandem pump and secure with socket head bolts -arrow A- and -arrow B-
-
Tighten upper 6mm socket head bolts -arrow A- to 20 Nm (15 ft. lbs.) and lower 5mm socket head bolts -arrow B- to 10 Nm (7 ft. lbs.)
-
Connect fuel supply hose -2- with white mark to fuel supply connection of tandem pump and secure with spring clamp
-
Connect vacuum hose -1- to tandem pump and secure with clamp
-
Connect fuel supply hose -1- with white mark to fuel pipe and secure with spring clamp
-
Connect suction pump VAS 5226 to fuel return pipe -3-
-
Operate suction pump until fuel comes out of fuel return pipe
-
Disconnect VAS 5226 from the fuel return pipe and connect fuel return hose -2- with blue mark to fuel return pipe and secure with spring clamp
-
If removed, reconnect connector to center glow plug
-
Reinstall upper air filter with connecting hose
-
Reconnect vacuum hose to upper air filter
-
Reinstall flexible connection hose between air flow sensor and air pipe and secure with spring clamps
-
Reconnect connector to mass air flow sensor
