Jetta L4-1.9L DSL Turbo (BEW) (2004)

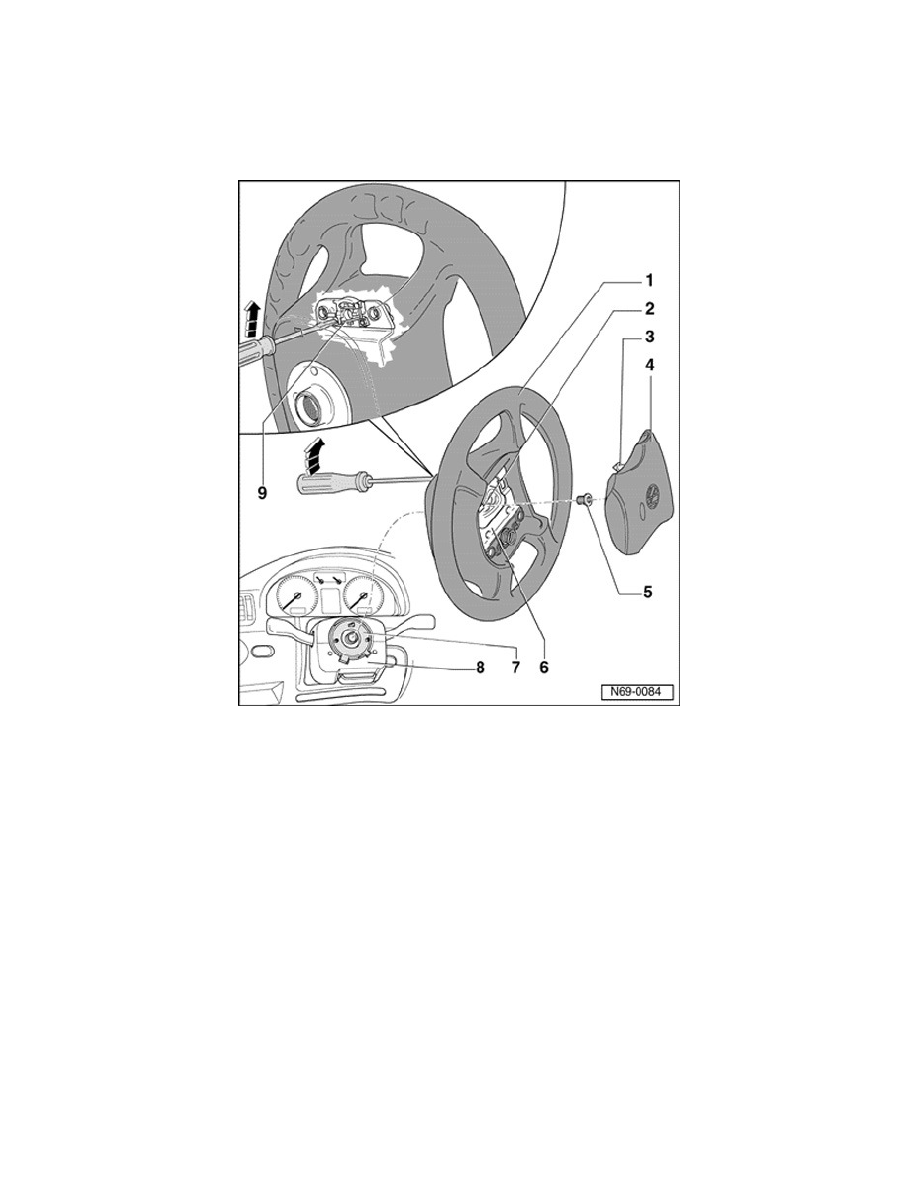

1
-
Steering wheel
2
-
Connector
3
-
Catches
-
are disengaged from back side of steering wheel
4
-
Airbag unit (with Airbag igniter, driver side -N95-)
5
-
Socket-head bolt
-
55 Nm
-
coated with locking compound
-
may be used up to five times
-
press in a punch indentation after each installation
6
-
Securing plate
7
-
Airbag spiral spring/return spring with slip ring -F138-
8
-
Trim
9
-
Clip
Driver Side Airbag Unit , Removing and Installing (Three-Spoke Steering Wheel)
Driver Side Airbag Unit, Removing And Installing (Three-spoke Steering Wheel)
Removing
-
Disconnect battery Ground (GND) strap.
CAUTION: Observe safety precautions for working on airbags.
-
Release steering column adjustment, pull out completely and push into upper position.
-
Secure steering column adjustment.
-
Turn steering wheel - 1 - until steering wheel spoke is in a vertical position.
