Jetta L4-1.9L DSL Turbo (BEW) (2004)
Throttle Position Sensor: Service and Repair

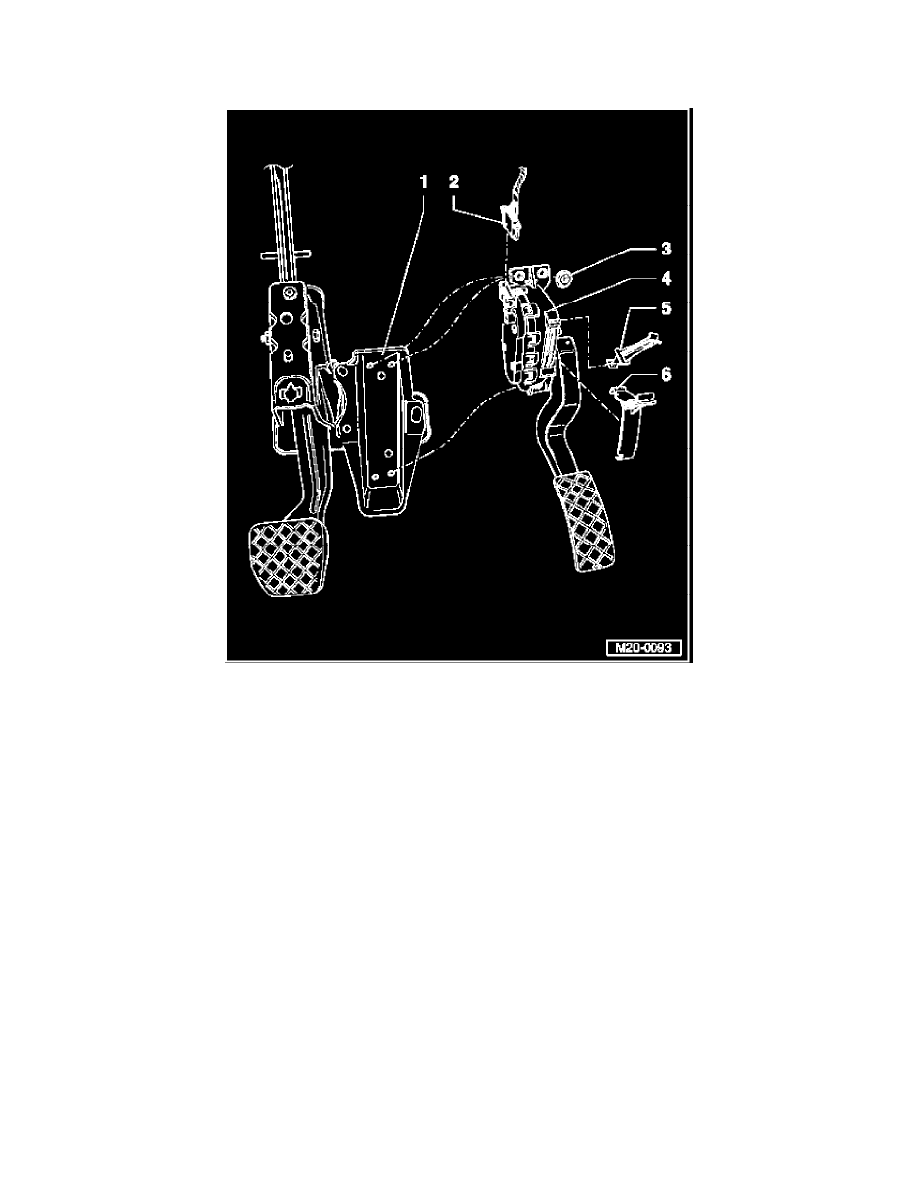

Accelerator linkage, servicing
NOTE: Components marked with * are checked via On Board Diagnostic (OBD), Diagnostic mode 3: Check DTC memory.
1
Mounting bracket
2
Connector
-
Black, 6-pin
3
10 Nm
4
Throttle Position (TP) Sensor -G79- and Sender -2- for accelerator pedal position - G185-*
-
Not adjustable.
-
Throttle Position (TP) sensor communicates the driver's intentions to the control module for Diesel-Direct fuel injection system
-
To remove sensor, remove cover in footwell
5
Bracket
-
for footwell cover
-
for model year 2002 >
-
clipped in at Throttle Position (TP) Sensor
6
Bracket
-
for footwell cover
-
for model year > 2001
-
clipped in at Throttle Position (TP) Sensor
