Jetta L4-2.0L (AEG) (2000)
/Page-436001.png)

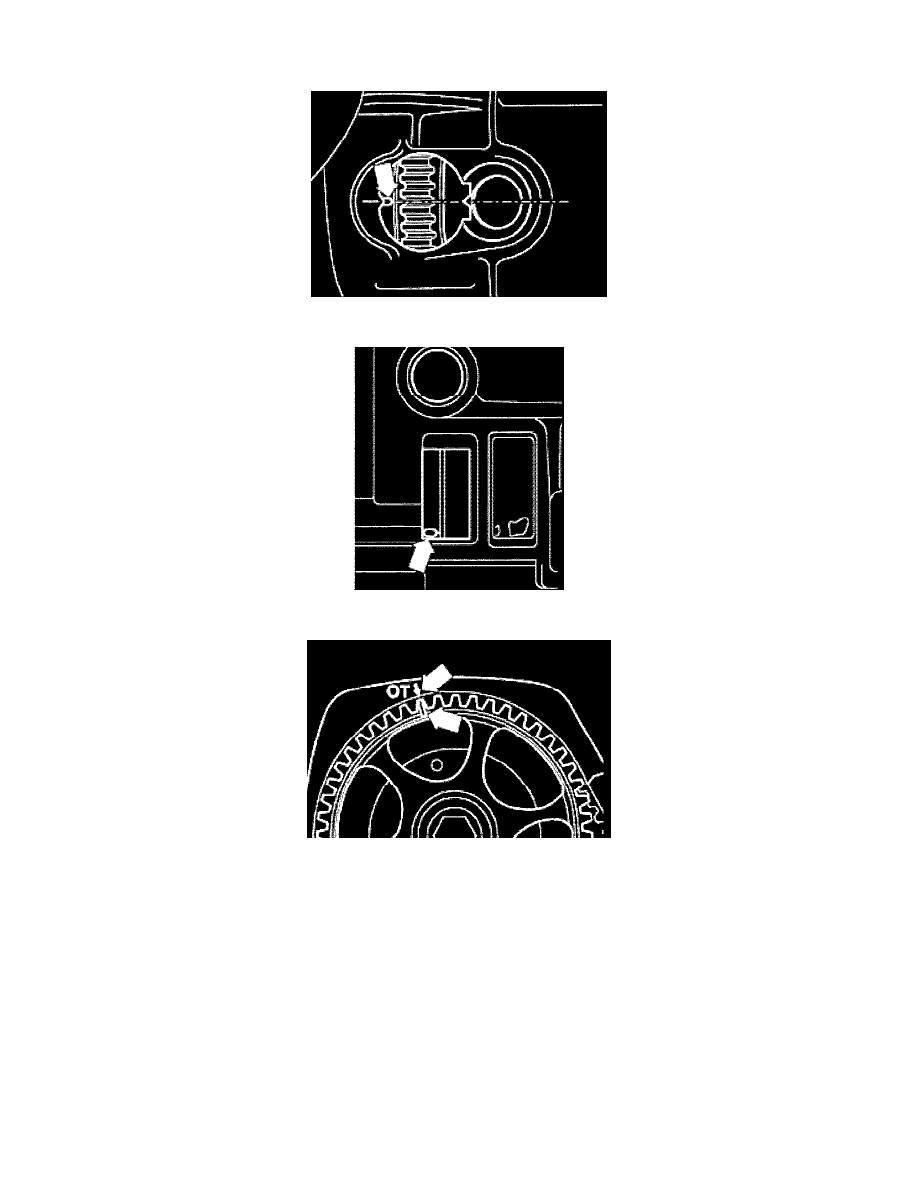

Timing Component Alignment Marks: Locations
Caution: Incorrect removal or installation of the timing belt can result in damage to internal engine components.
-
Turn crankshaft to cyl. 1 TDC (arrow) (Engine with manual transmission shown).
-
Turn crankshaft to cyl. 1 TDC (arrow) (Engine with automatic transmission shown).
For complete Timing Belt Removal and Installation information: See: Timing Belt/Service and Repair
