Jetta L5-2.5L (CBTA) (2008)
^
Allocate clutch discs and pressure plates according to engine code.
^
Ensure the engine to transmission alignment sleeves are installed in the cylinder block, install if necessary.
^
If alignment sleeves are not present, shifting difficulties, clutch problems and possibly noise in transmission (loose gear rattling) will occur.

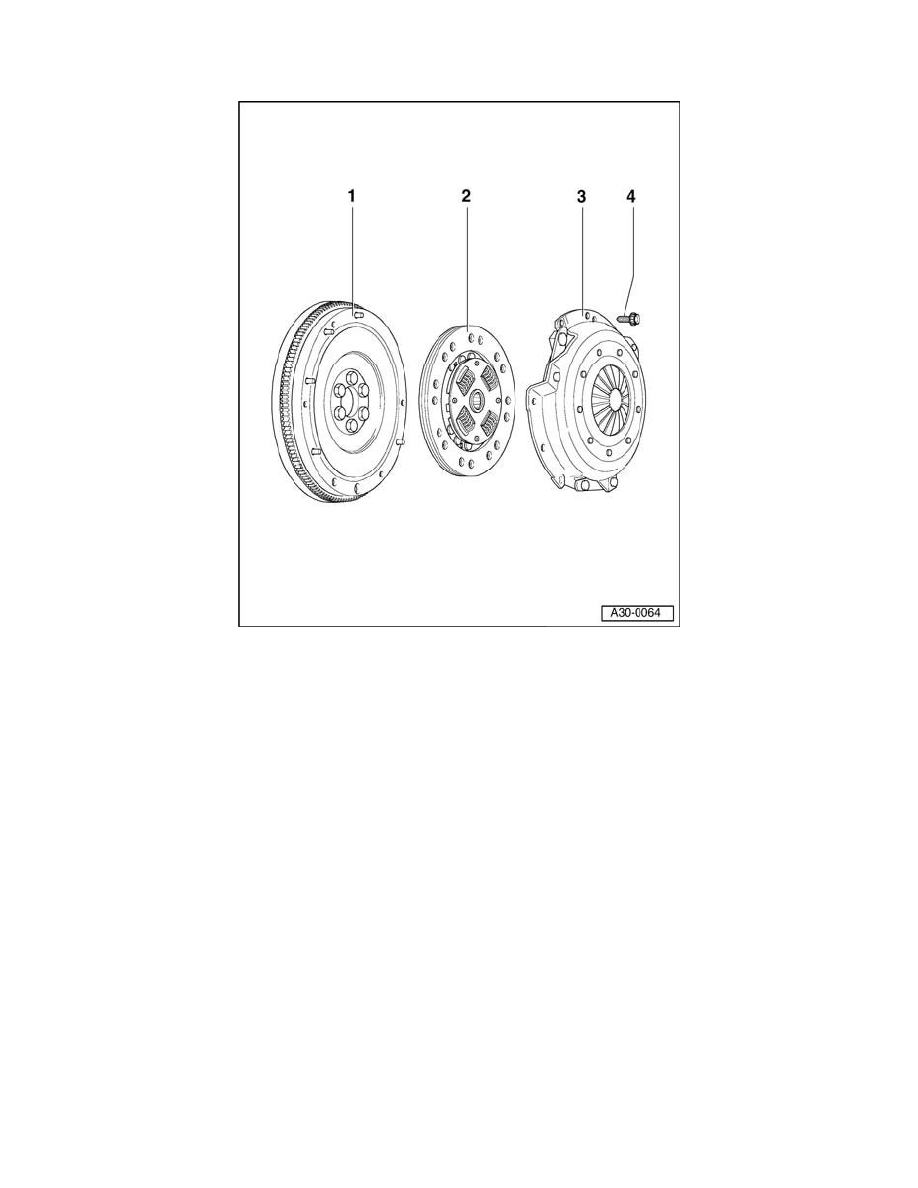

1 -
Flywheel
^
Make sure centering pins fit securely
^
Keep the clutch lining contact surface free of grooves, oil and grease
2 -
Clutch plate
^
The spring cage faces the pressure plate
^
Center
^
Lightly grease splines
Note: Clean the input shaft splines and on used clutch plates, the hub splines, remove corrosion and apply only a very thin coating of grease G 000
100 onto the input shaft splines. Then move clutch plate back and forth on input shaft until the hub moves freely on the shaft. Excess grease must be
removed.
3 -
Pressure plate
^
Check ends of the diaphragm spring
^
Check spring connections and rivet connections
Note: Pressure plates are corrosion-protected and greased. Only the contact surfaces may be cleaned, otherwise the service life of the clutch will be
considerably reduced.
4 -
Bolt
^
Allocate
^
20 Nm
^
Loosen and tighten in stages and in diagonal sequence
