Jetta V6-2.8L (BDF) (2002)

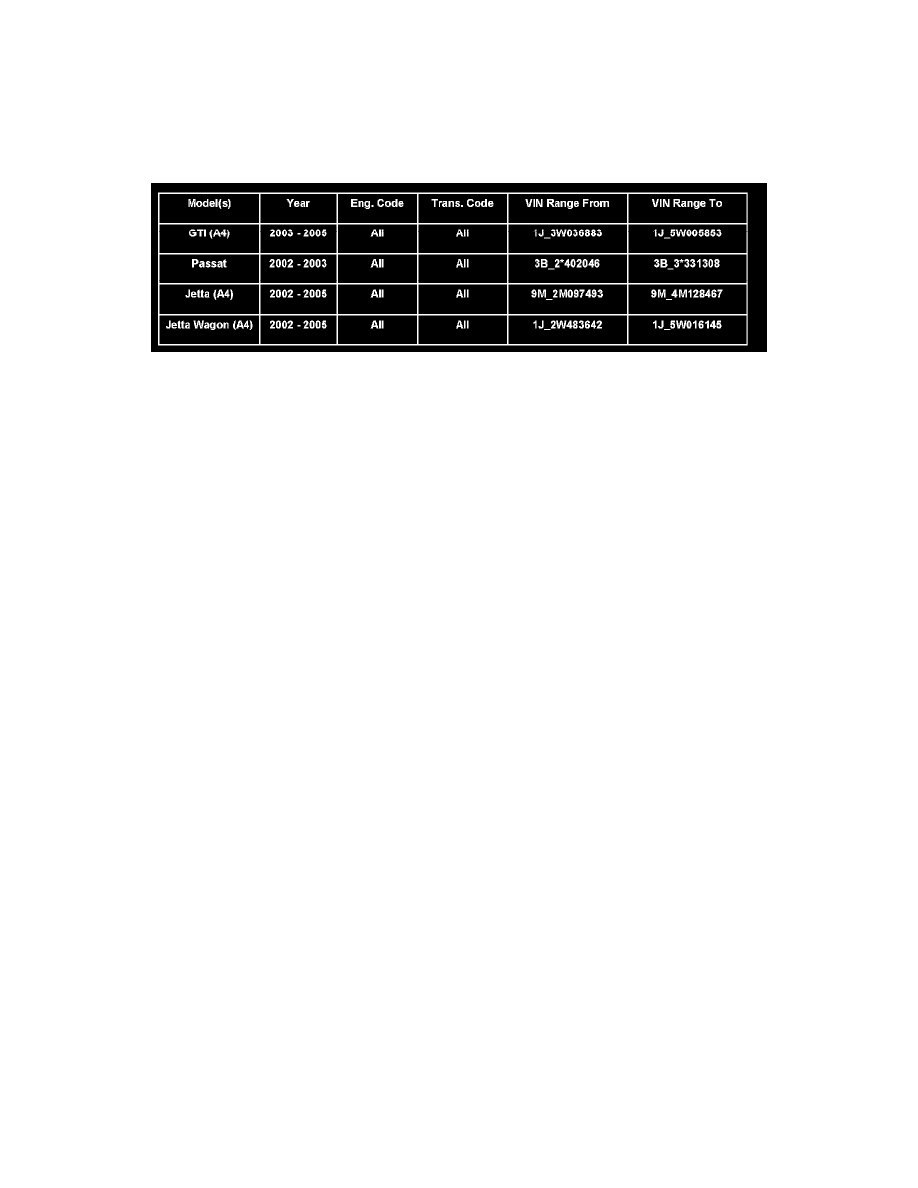

/Page-2280002.png)
If the campaign has not been completed:
^
Proceed to appropriate campaign circular (VZ / M3).
Passenger Side Seat Heater Switch Wiring Harness End Connector Reference
Step 2
^
Remove passenger side seat heater switch, see Repair Manual Group 72 in ElsaWeb. DO NOT disconnect wiring harness connector.
^
Switch ignition key ON.
^
Passenger side seat heater switch OFF.
^
Using a DVOM to ground, Measure voltage at pin 4 and pin 5 of the seat heater switch wiring harness connector.
No voltage on one or both circuits indicates a open circuit (open fuse, open wire or harness connection). Repair appropriately, otherwise proceed to step
3.
Step 3
^
Switch the ignition OFF.
^
Disconnect the seat heater switch from the connector.
^
Use an ohm meter and measure resistance between pin 2 and pin 6 of the seat heater connector.
If the resistance is less than 2.5 ohms:
^
Proceed to step 4
If the resistance is greater than 2.5 ohms:
^
Proceed to step 5
Step 4
^
Connect the seat heater switch wiring harness connector.
^
Switch the ignition ON.
^
Place seat heater switch in position 1.
^
Measure voltage at pin 2 of the seat heater switch wiring harness connector.
If there is no voltage:
^
Replace seat heater switch.
Step 5
^
Remove seat trim per Repair Manual Group 72 in ElsaWeb and access seat heater element wiring harness connector.
^
Measure resistance between pin 3 and pin 4 of the seat heater element male green connector:
