Jetta GLS Wagon L4-2.0L (AZG) (2002)
Sunroof / Moonroof Motor: Locations

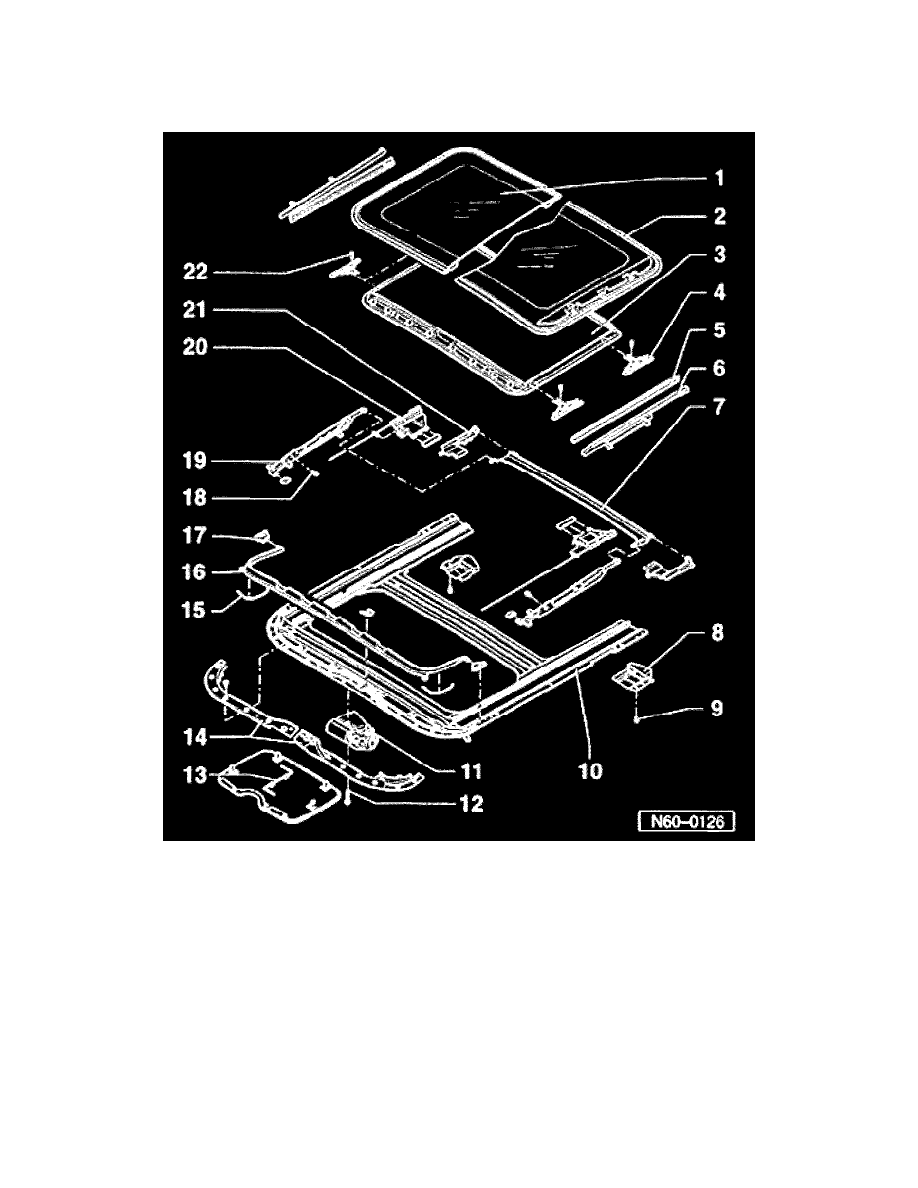

Sunroof With Glass Panel, Assembly Overview (Webasto)
Sunroof With Glass Panel, Assembly Overview
1
-
Glass panel for sunroof (single pane safety glass)
2
-
Panel seal
3
-
Sliding headliner
4
-
Slide
5
-
Lower trim
6
-
Upper trim
7
-
Water channel
-
Removed together with slotted guide rail.
8
-
End piece
-
Use butyl adhesive sealing cord AKL 450 005 05 to seal
9
-
Bolt
10
-
Carrier unit
-
U frame with guide channels
-
If required, guide channels are to be greased with special grease, G 000 450 02 only, otherwise correct operation cannot be guaranteed.
11
-
Drive motor
12
-
Bolt
13
-
Cover
