New Beetle L5-2.5L (BPR) (2007)
-

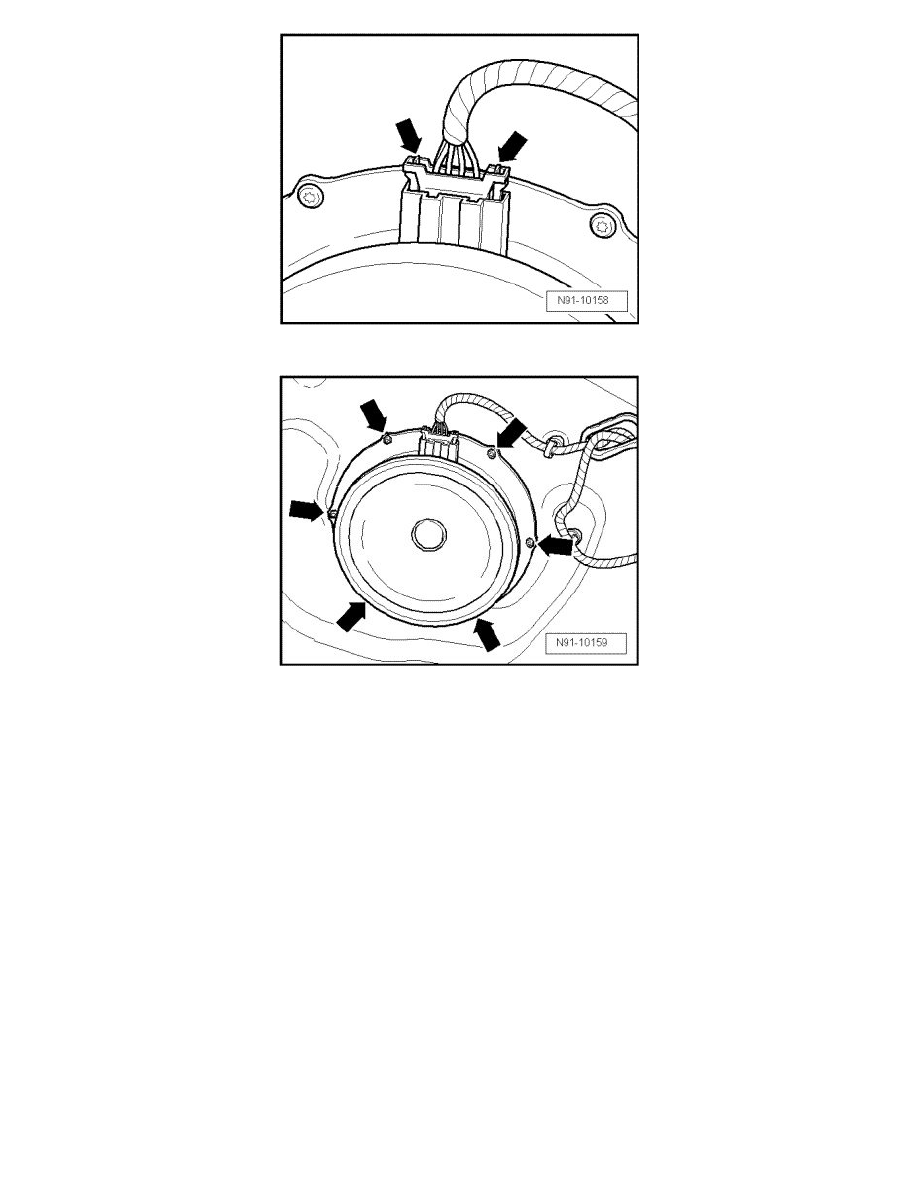

Using a suitable drill, drill out rivets - arrows - and remove speaker.
‹› To prevent corrosion, ensure that all metal particles from drilling are removed from inside the door.
‹› If paint on door frame is damaged during drilling, touch-up immediately.
Installing
-
When installing, secure new speaker with special pop rivets (note replacement part number!)
Further installation is in the reverse sequence to removal.
Rear Treble Speaker
Speakers
Rear Treble Speaker
Removal and installation of left or right side speakers is identical.
Removing
-
Switch off ignition, switch off all electrical consumers and remove ignition key.
-
Remove the side trim.
-
Disconnect the harness connector at the speaker.
-
Remove screws - 1 - from the trim.
