Passat (B3)

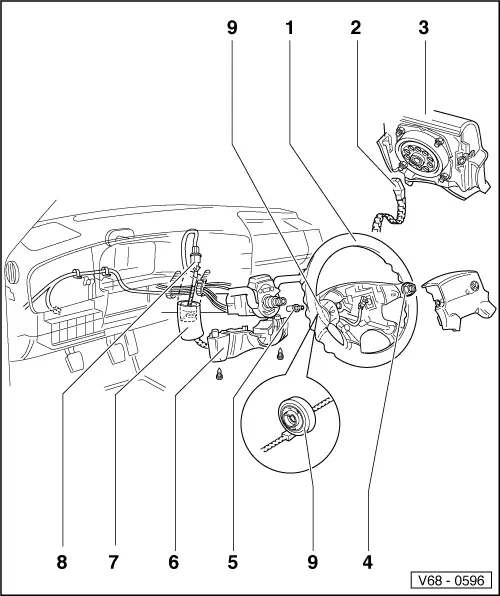

| Assembly overview - driver airbag unit |
| 1 - | Steering wheel |
| q | Removing and installing → Chapter |
| 2 - | Connector |
| 3 - | Airbag unit |
| q | Removing and installing → Chapter |
| 4 - | 50 Nm |
| 5 - | Hexagon socket-head bolt |
| q | 6.5 Nm |
| q | Must always be replaced. |
| 6 - | Bottom part of trim |
| 7 - | Foam tube |
| 8 - | Connector |
| 9 - | Coil connector with slip ring |
| q | Removing and installing → Chapter |
