Passat (B3)

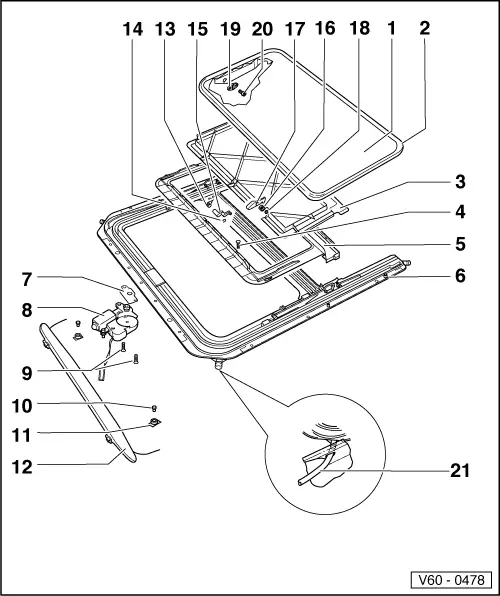

| Assembly overview |
| 1 - | Adjusting sliding/tilting sun roof panel |
| q | Removing → Chapter |
| q | Installing → Chapter. |
| q | Adjusting → Chapter. |
| 2 - | Panel seal |
| q | Seal joint is in middle of right, side area |
| 3 - | Panel for sliding headliner |
| 4 - | Securing bolts |
| 5 - | Sliding headliner (includes panel → Item) |
| q | Removing → Chapter |
| 6 - | Carrier unit |
| q | Removing → Chapter |
| q | Carrier unit comprises of following parts: |
| q | U-frame (with guide channels) - if necessary, guide channels should be lubricated using only special grease -G 000 450 02-, as otherwise functions may be impaired. |
| q | Under no circumstances should multi-purpose grease be used. |
| q | Rear guides with cables |
| q | Front guides |
| 7 - | Spacer plate |
| 8 - | Cable drive (electric) |
| q | Checking cable drive (zero position) → Chapter |
| 9 - | Countersunk screws (microencapsulated) |
| q | Clean thread prior to installation using wire brush and coat with locking compound -D 185 400 A2- |
| q | 3 Nm |
| 10 - | Wind deflector securing bolt |
| 11 - | Shaped element with thread |
| q | Thread must point to rear at an angle |
| 12 - | Wind deflector |
| q | Open panel to rear and unscrew wind deflector |
| 13 - | Tilt lever spring |
| 14 - | Circlip |
| 15 - | Tilt lever |
| q | Tilt lever must push against guide rail under spring pressure |
| 16 - | Detent hook spring |
| 17 - | Detent hook |
| 18 - | Circlip |
| 19 - | Shim |
| q | Integral part of coulisse guide |
| 20 - | Torx bolt (T 25) |
| q | Observe installation instructions → Chapter |
| q | 6 Nm |
| 21 - | Water drainage hoses |
| q | Cleaning → Chapter |
