Passat Wagon L4-2.0L Turbo (BPY) (2008)
-

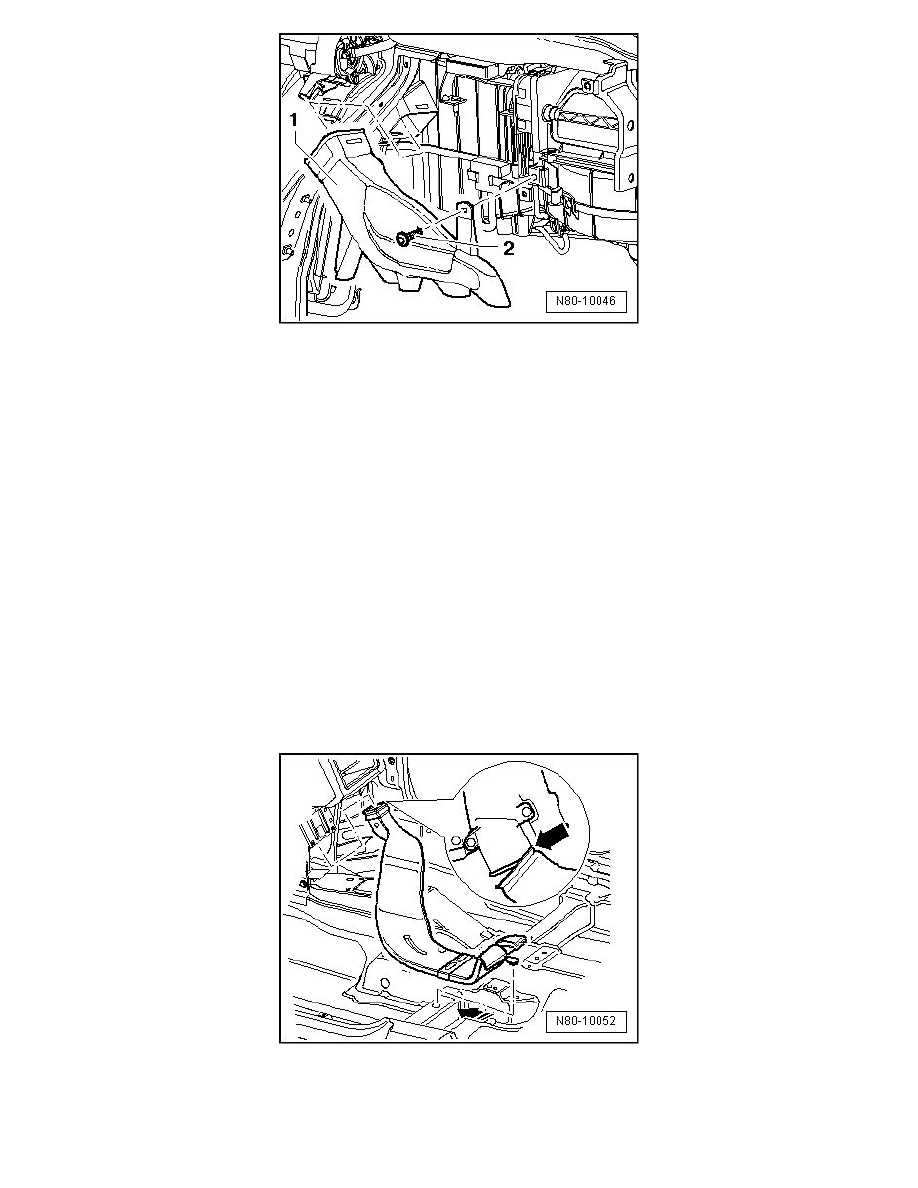

Remove screw - 2 - and remove right footwell vent - 1 -.
Installing
Install in reverse order of removal.
‹› Screw tightening specification: 1.5 Nm
‹› In vehicles with glove compartment cooling, make sure cooling hose is correctly seated.
Left Footwell Vent
Vents and Ducts
Rear Channel Footwell Duct
‹› Removal of rear channels on both sides is identical, only the sides are reversed.
Removing
-
Remove driver or front passenger seat.
-
Remove center console.
-
Lift floor carpet, unclip rear channel from floor and pull off from heating unit.
Installing
Install in reverse order of removal.
