Tightening torques

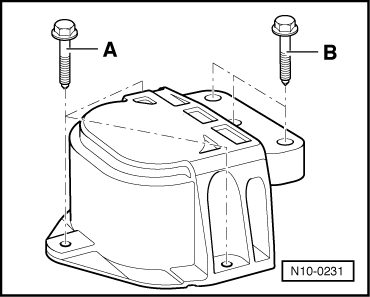

→ Engine mounting

A1) = 20 Nm + 90° (1/4 turn) further
B1) = 40 Nm + 90° (1/4 turn) further

    1)    Renew

→ Gearbox mounting

A1) = 40 Nm + 90° (1/4 turn) further
B1) = 20 Nm + 90° (1/4 turn) further
C1) = 40 Nm + 90° (1/4 turn) further

    1)    Renew

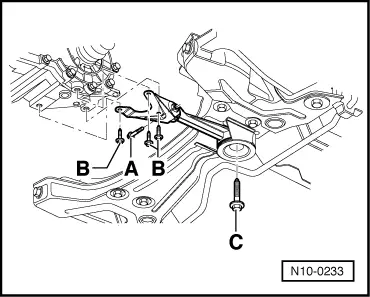

→ Pendulum support

A1) = 90 Nm + 90° (1/4 turn) further
B1) = 40 Nm + 90° (1/4 turn) further
C1) = 90 Nm + 90° (1/4 turn) further

    1)    Renew
