Tightening torques

Note:

The assembly mounting securing bolts are stretch bolts and must be replaced.

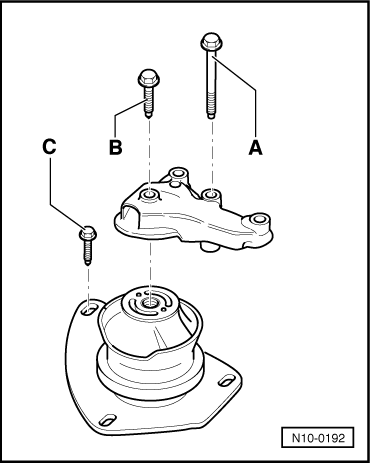

→ Engine mounting

A = 40 Nm + 1/4 turn (90°) further
B = 50 Nm
C = 20 Nm + 1/8 turn (45°) further

Vehicles with manual gearbox

→ Gearbox mounting

A = 60 Nm + 1/4 turn (90°) further
B = 20 Nm + 1/8 turn (45°) further
C = 50 Nm

Vehicles with automatic gearbox

→ Gearbox mounting

A = 60 Nm + 1/4 turn (90°) further
B = 20 Nm + 1/8 turn (45°) further
C = 30 Nm

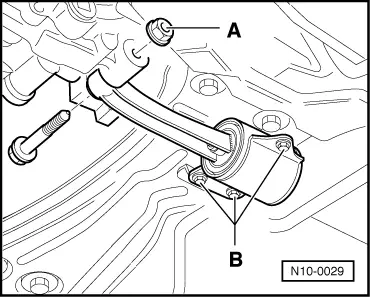

Vehicles with manual gearbox

→ Pendulum support

A = 50 Nm (tighten on nut)
B = 20 Nm + 1/4 turn (90°) further

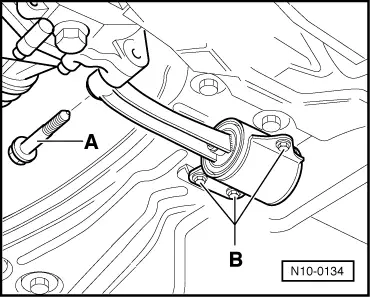

Vehicles with automatic gearbox

→ Pendulum support

A = 50 Nm
B = 20 Nm + 1/4 turn (90°) further

• ‒ Carry out a test drive and interrogate fault memory:

=> Repair group 01; Self-diagnosis; Interrogating and erasing fault memory
