Tightening torques

Note:

The bolts must not be used again.

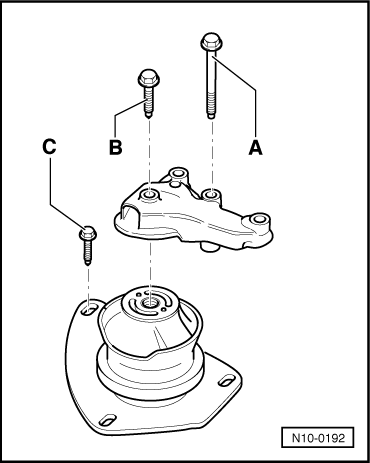

→ Engine mounting

A = 40 Nm + 1/4 turn (90°) further
B = 50 Nm
C = 20 Nm + 1/8 turn (45°) further

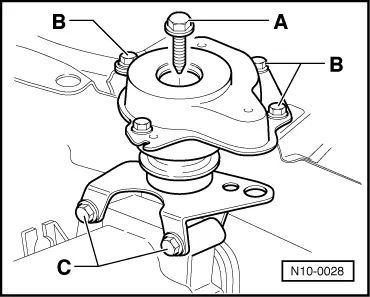

→ Gearbox mounting

A = 60 Nm + 1/4 turn (90°) further
B = 20 Nm + 1/8 turn (45°) further
C = 50 Nm

→ Pendulum support

A = 50 Nm (tighten on nut)
B = 35 Nm
