Special tools and workshop equipment required

• ◆ V.A.G 1598/21 Adapter

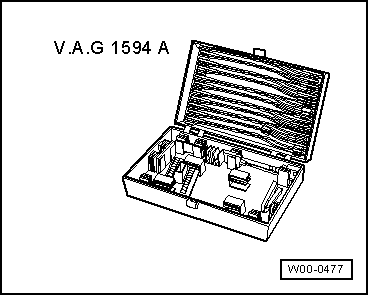

• ◆ V.A.G 1594 A Auxiliary test set

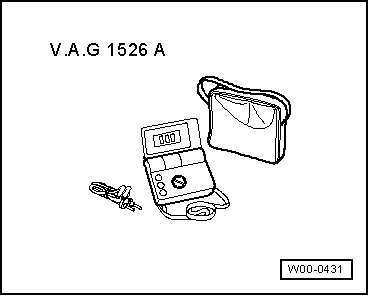

• ◆ V.A.G 1526 A Hand multimeter

The test steps from Page 01-85 are valid for:

• ◆ For vehicles on which the self diagnosis does not give any indication of the source of the fault. Work through the complete electrical check.
• ◆ For vehicles on which the self diagnosis provides a direct indication of the source of the fault. Only carry out the test steps recommended in the fault table (directed entry).

An overview of all the test steps in the electrical check can be found on Page 01-83 .
