Polo Mk4

Mirror cover (▸ 2006) - remove
Mirror cover (► 2006) - remove
–  To facilitate the assembly, bend the rear-view mirror forward.
–  Remove the mirror glass → Item -1-.

–  Disconnect the electric connector from the mirror glass, in case of heated mirrors.

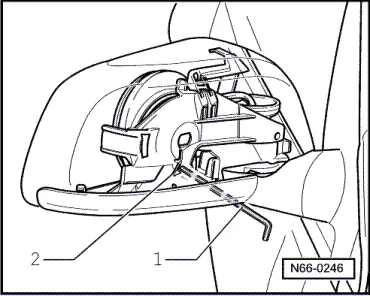

–  Fit an “Allen” wrench 3 mm (13 cm of length) -1- or something similar from below, in the mirror support articulation opening, to unlock the retaining clip -2- in the mirror housing.
  Note
The “Allen” wrench is guided by the mirror structure to the retaining clip -2-. Put an adequate pressure on the retaining clip.
  N66-0246
–  Unlock the retaining clips -arrows- in the mirror housing.
–  Remove the mirror housing -1- from the mirror support -2- from above.
  N66-0247
