Polo Mk4

Rear wheel drum brake without ABS

Rear wheel drum brake without ABS

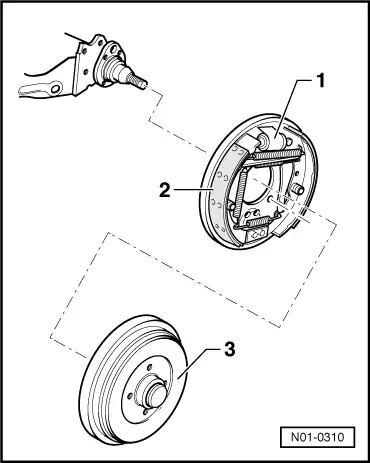

  N01-0310
pos.PR number 1KB / 1KM
 Brake cylinderØ mm20,64
19,051)
 Servo brakeØ in8,5''
1Wheel brake cylinderØ mm17,46
19,05
2Brake shoe, thicknessmm5
 Brake shoe, widthmm38.8
3Brake drumØ mm200

Only for vehicles with 13" Running Gear without ABS
