Polo Mk4
Engine
4-cylinder injection engine
Engine assy,cylinder block,crankcase / Removing and installing engine
Assembly mountings
Assembly mountings
Assembly mountings
Torque settings
Note
Securing bolts for assembly mountings are stretch bolts and must be renewed.
Engine assembly mounting
A
→ Note
= 20 Nm + 90° (1/4 turn) further
B
→ Note
= 30 Nm + 90° (1/4 turn) further
1)
Renew.
Gearbox assembly mounting
A
→ Note
= 50 Nm + 90° (1/4 turn) further
B
→ Note
= 40 Nm + 90° (1/4 turn) further
2)
Renew.

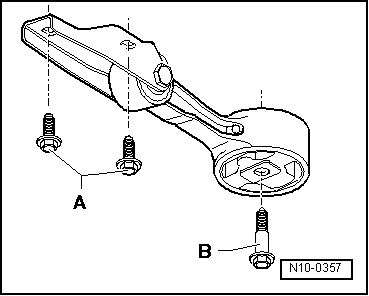

Pendulum support
A
→ Note
= 30 Nm + 90° (1/4 turn) further
B
→ Note
= 40 Nm + 90° (1/4 turn) further
3)
Renew.
