Polo Mk4

Locating defects and indicating faults
Locating defects and indicating faults
The Combined instrument -K- is equipped with self-diagnosis function.

For troubleshooting, use the Vehicle diagnostic, testing and information system -VAS 5051- or the Vehicle diagnosis and technical information system -VAS 5052- or later equipment.
  W00-1206

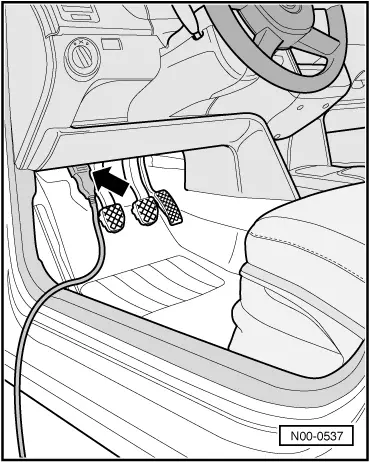

–  Connect the Vehicle diagnostic, testing and information system -VAS 5051- or the Vehicle diagnosis and technical information system -VAS 5052- or later equipment → General information; Rep. gr.97 on 16-pin diagnostic connection -T16--arrow-.
–  Turn on the ignition.
–  Turn off all electrical equipment.
–  Proceed by selecting the desired functions → Vehicle diagnostic tester.
  N00-0537
