Removing
Removing
Removing
–

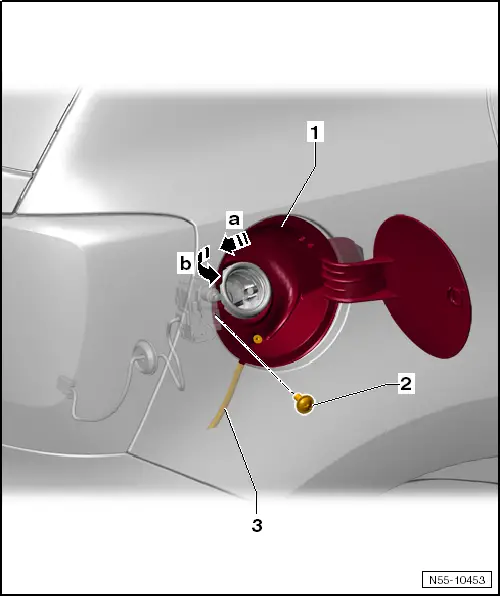

Screw off tank cover.
–
Remove bolt
-2-
.
–
Peel rubber grommet off the fuel filler neck.
–
Pull tank flap unit
-1-
together with water drainage hose
-3-
towards rear
-arrow a-
out of fasteners and swing tank flap unit
-1-
out of side panel
-arrow b-
.
