Polo Mk5
| Installing |
| – | Notes on washer fluid hose connectors can be found in → Electrical system; Rep. gr.92. |

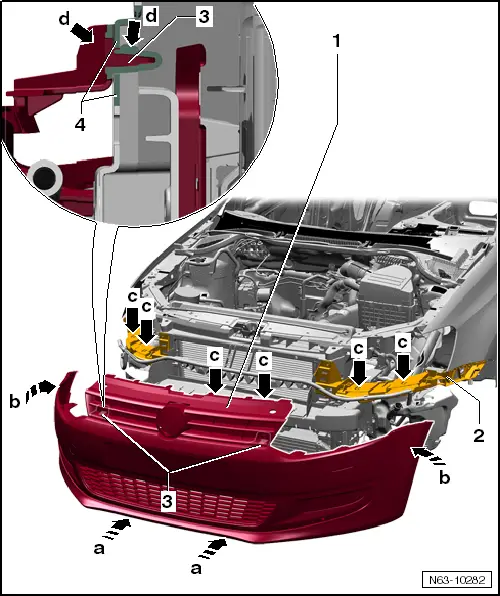

| – | Guide front bumper cover -1- parallel -arrows a- onto lock carrier. |
| – | Press radiator grille and bumper cover into fasteners -arrows c-. |
| – | Push front bumper cover -1- onto guides -2--arrows b-. |
Note| When positioning front bumper cover, ensure it is parallel to wing. |
| – | Check that parts are parallel and gaps are even → Rep. gr.00; Karosseriespaltmaße; Karosserie vorn. |
| – | Fit bolts -2, 4, 5- and -6- in place and tighten them to the respective specified torque → Chapter. |
