Polo Mk5
|

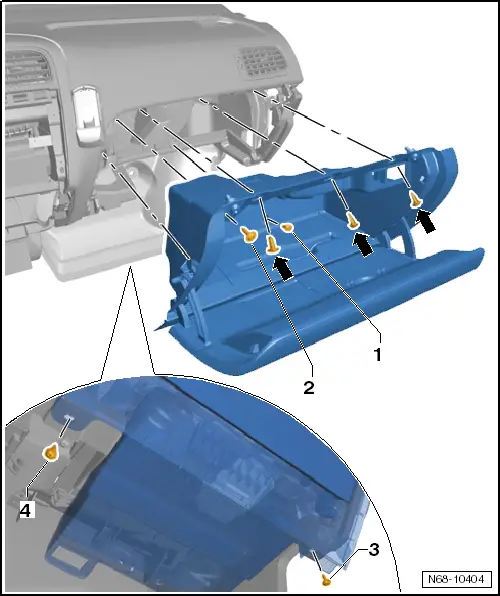

– | Unscrew 3 bolts -arrows- (1.5 Nm). |
– | Unscrew bolts -1- and -2- in glove compartment (1.5 Nm). |
– | Unscrew bolts -3- and -4- (1.5 Nm). |
– | Release glove compartment from dash panel. |
– | In vehicles with front passenger airbag deactivation, separate connector from key operated switch to deactivate front passenger side airbag -E224-. |
– | In vehicles with tyre pressure monitor display, separate connector from tyre pressure monitor display button -E492-. |
– | In vehicles equipped with glove compartment cooling, disconnect air conditioning duct from glove compartment. |
|
