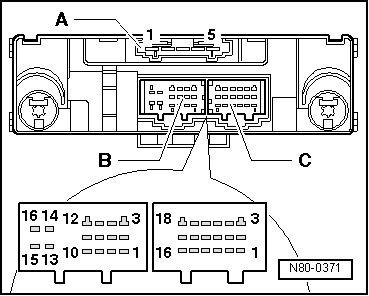

Pin assignment of multi-pin connectors for operating and display unit for front air conditioning systemE87 with air conditioning control unitJ301
Pin assignment of multi-pin connectors for operating and display unit for front air conditioning system -E87- with air conditioning control unit -J301-

5-pin connector housing -A-, T5i in current flow diagram
1 - Blower 4th speed
2 - Blower 3rd speed
3 - Blower 2nd speed
4 - Blower 1st speed
5 - Terminal -X- contact
  N80-0371
16-pin connector housing -B-, T16h in current flow diagram
1 - High-pressure sender -G65-
3 - Radiator fan V7 and V35 relay - 1st speed -J279-
4 - Optional
6 - Radiator fan V7 and V35 relay - 2nd speed -J513-
8 - High-speed CAN bus (optional)
11 - Low-speed CAN bus (optional)
12 - Fresh air and air recirculation flap control motor -V154-
13 - Terminal 31
14 - Terminal 15
15 - Air conditioner compressor regulating valve -N280-
16 - Terminal 30 (optional)
  N80-0371
18-pin connector housing -C-, T18 in current flow diagram
3 - Evaporator output temperature sender -G263-
4 - Signal earth for evaporator output temperature sender -G263-
15 - Fresh air and air recirculation flap control motor -V154-
18 - Fresh air and air recirculation flap control motor -V154-
  N80-0371
