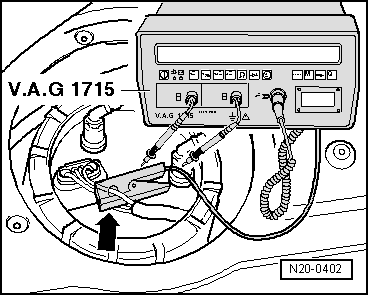

| Connect multimeter -V.A.G 1715- to wire -arrow- to contact 1 of connector using pick-up clamp. |
| –
| Start engine and run at idling speed. |
| –
| Measure current draw of fuel pump. Specification: max. 8 amps. |
| The starting current for the fuel pump can lie briefly above specifications when starting the engine. |
Note | If the fuel system malfunction is intermittent, you can perform the check during a road test, but a 2nd person is necessary. |
| If the current draw is exceeded: |
| –
| Fuel pump defective, renew fuel pump unit . |
|
|
|
