Characteristics of the sealing flange and the assembly deviceT10017 and T10134
Characteristics of the sealing flange and the assembly deviceT10017 and T10134
Characteristics of the sealing flange and the assembly device -T10017- and -T10134-
Note
t
Please note that different sealing flanges can be fitted
→ ETKA (electronic parts catalogue)
.
t
Use the appropriate assembly device for the sealing flange.
Sealing flange with assembly tool -T10017-
1 - Dowel
2 - Transportation lock (not to be removed until directly before the assembly)
Removing and installing
→ Chapter

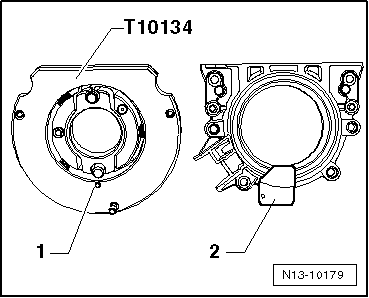

Sealing flange with assembly tool -T10134-
1 - Dowel
2 - Transportation lock (not to be removed until directly before the assembly)
Removing and installing
→ Chapter
