Polo Mk5

Removing and installing engine cover panel
Removing and installing engine cover panel
Removing
  Caution
Bracket for engine cover on cylinder head cover may break off if removed improperly. Always remove engine cover according to following instructions.

–  Pull engine cover upwards out of fasteners in areas of -arrows- and in sequence shown. To do this, grip as far beneath engine cover as possible.
Installing
  Caution

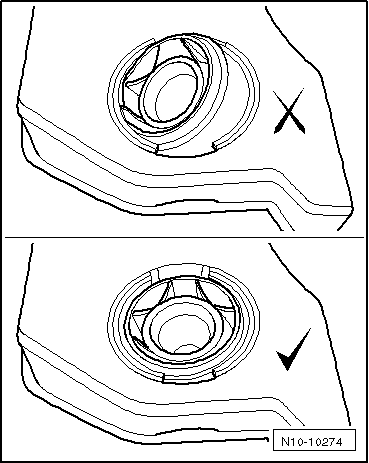

Ensure that the 4 fasteners (ball sockets) are correctly positioned before installing the engine cover panel; if necessary, bring them into correct position. Otherwise the engine cover panel may be damaged.
  N10-10354
–  Press engine cover ball sockets into correct position.
–  Position engine cover on securing points and press corners into fasteners.
  N10-10274
